Question: Problem 2 ( 2 5 pts ) : Deflections - Virtual Work - Beams. For the beam below, calculate the vertical deflection at point C

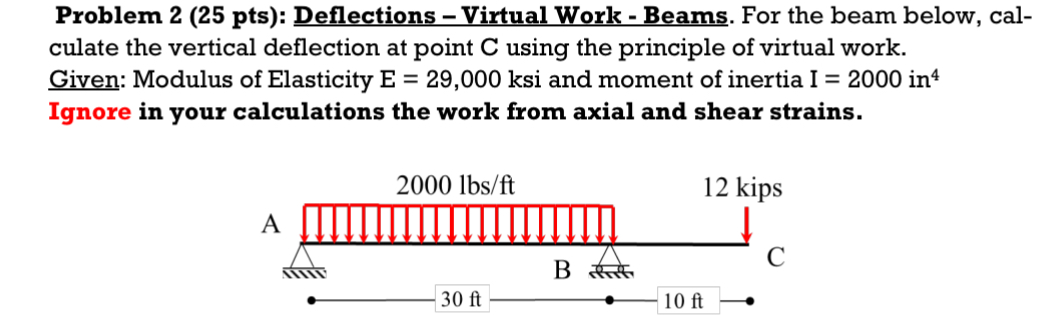

Problem 2(25 pts): Deflections - Virtual Work - Beams. For the beam below, calculate the vertical deflection at point C using the principle of virtual work. Given: Modulus of Elasticity E =29,000 ksi and moment of inertia I =2000 in ?4 Ignore in your calculations the work from axial and shear strains.
