Question: Problem 2 [ 3 0 pnts ] A bent beam with a roller support at ( A ) and a pin support at

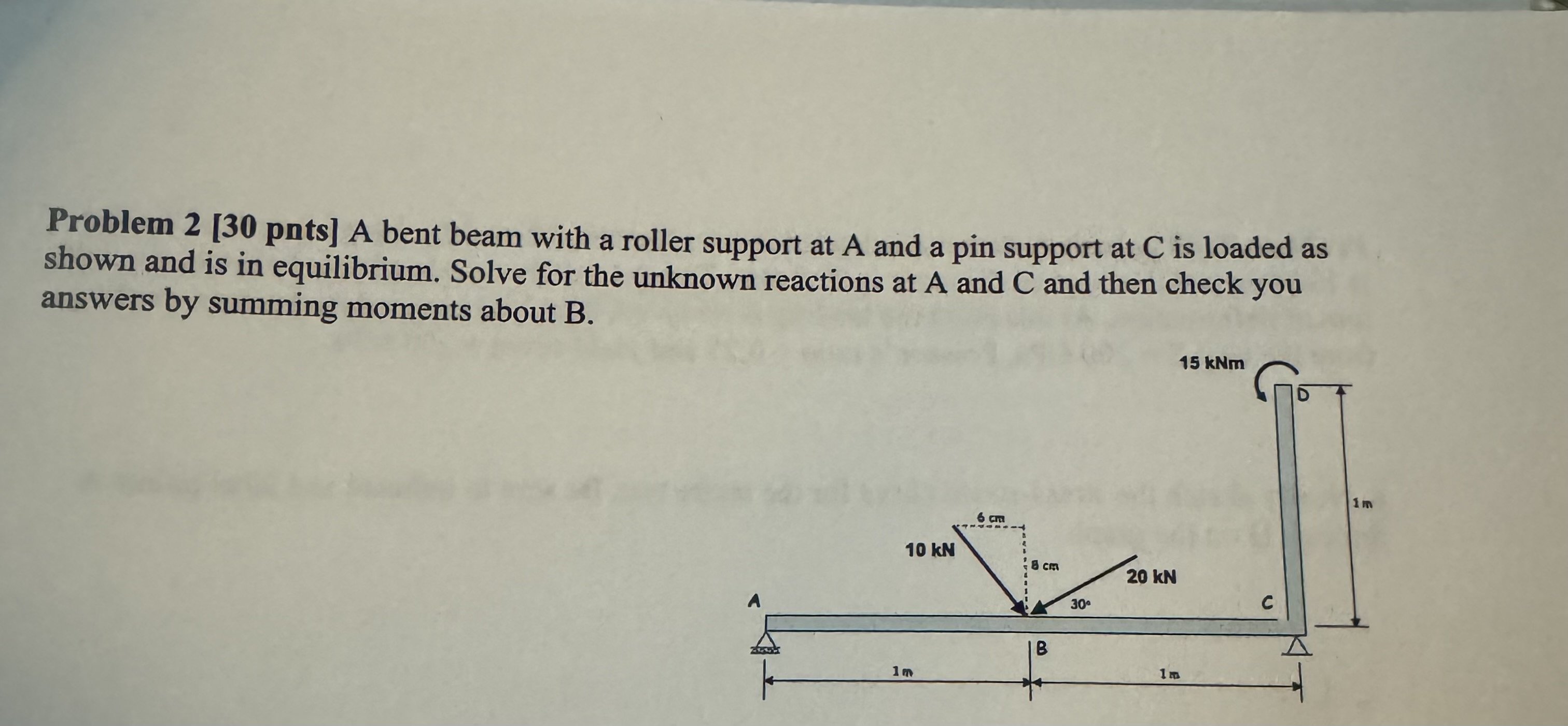

Problem 2[30 pnts] A bent beam with a roller support at \( A \) and a pin support at \( C \) is loaded as shown and is in equilibrium. Solve for the unknown reactions at \( A \) and \( C \) and then check you answers by summing moments about B .
Problem 2 [ 3 0 pnts ] A bent beam with a roller

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
