Question: Problem 2 : 3 0 points Determine the vertical displacement of joints B and E . For each member A = 4 0 0 m

Problem 2: 30 points

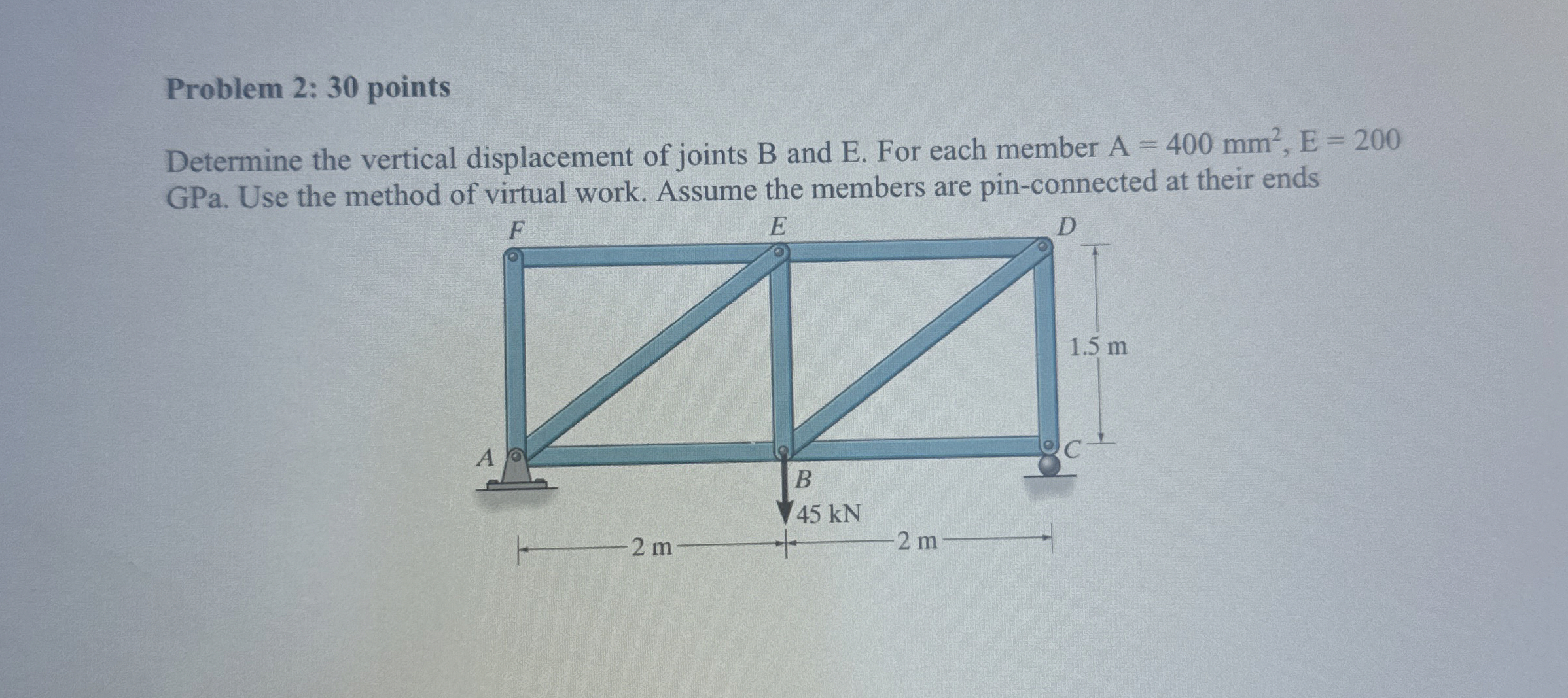

Determine the vertical displacement of joints B and E. For each member A=400mm2,E=200 GPa. Use the method of virtual work. Assume the members are pin-connected at their ends PLS HELPPP
Problem 2 : 3 0 points Determine the vertical

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
