Problem $2(30$ points$).$ For the given beam with constant EI$,$ answer the questions using Moment$-$Area Method:

$($a$)[10$ points$]$ Draw the curvature diagram in the given space below. Mark the all$-$important values, and show the procedure $($SFD$,$ BMD$)$ to obtain the curvature diagram.

Answer:

$($b$)$ points

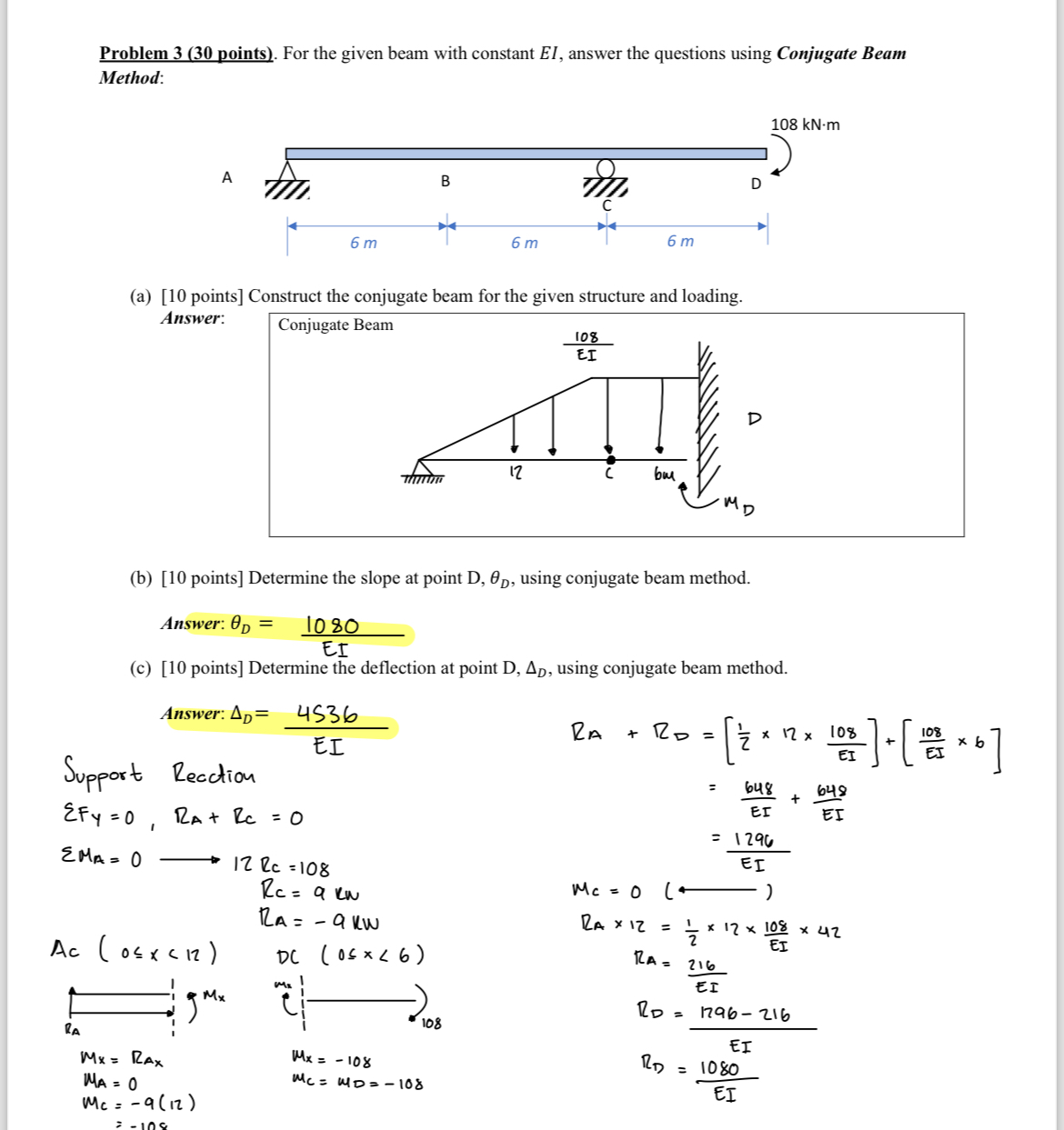

Problem $3(30$ points$).$ For the given beam with constant $EI,$ answer the questions using Conjugate Beam

Method:

$($a$)[10$ points
