Question: Problem 2 ( 3 0 points ) - show detailed steps For the truss and loading given, use the method of ioints to determine the

Problem

2 (30

points

) -

show detailed steps

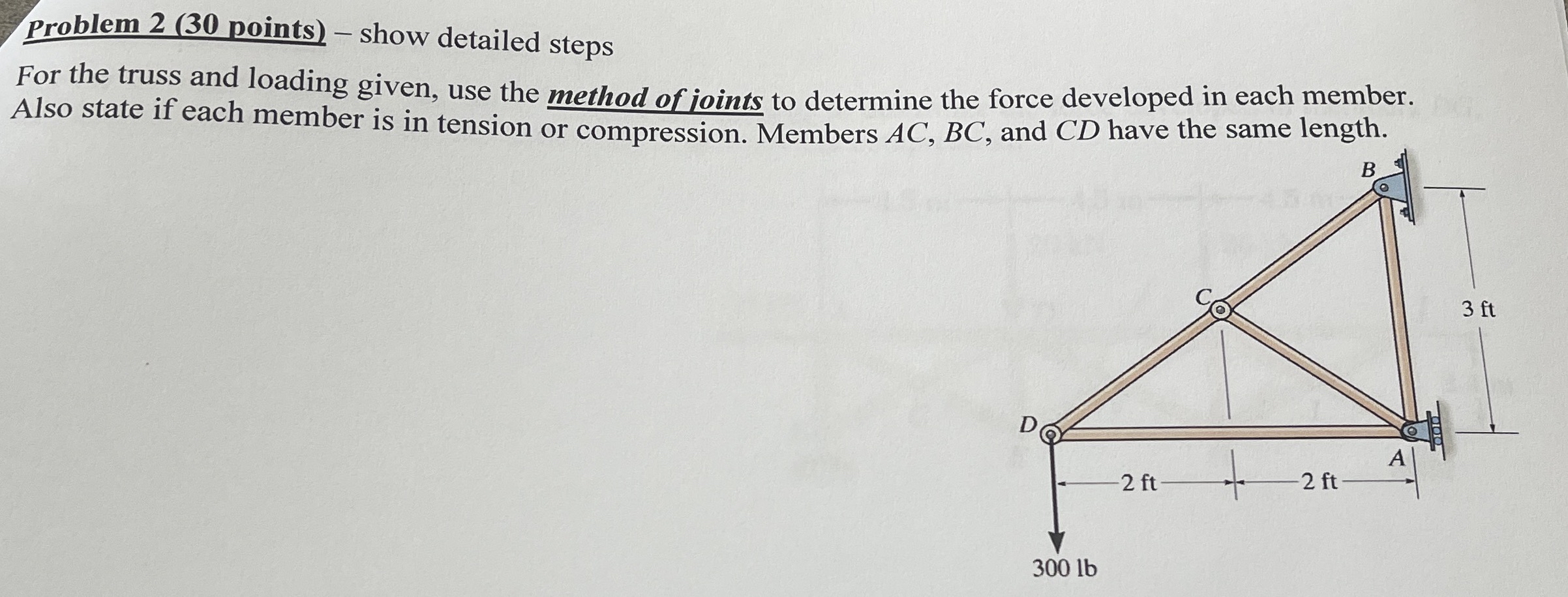

For the truss and loading given, use the method of ioints to determine the force developed in each member. Also state if each member is in tension or compression. Members

A C, B C,

and

C D

have the same length.

300

Problem 2 ( 3 0 points ) - show detailed steps

Step by Step Solution

There are 3 Steps involved in it
