Question: Problem 2 ( 3 0 points ) : The system has a spring support CE , a cable support ABC, and a cable support CD

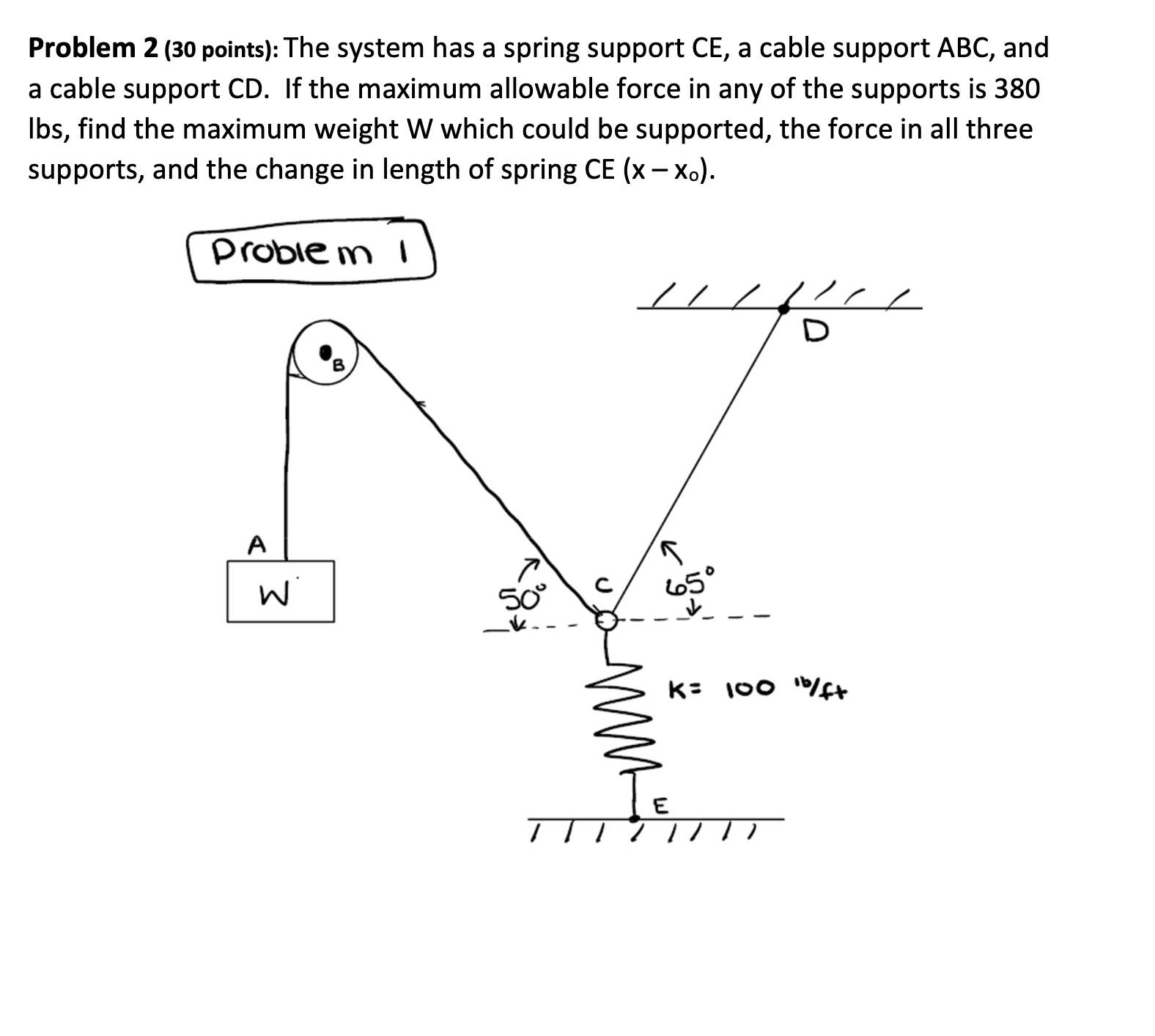

Problem 2(30 points): The system has a spring support CE, a cable support ABC, and a cable support CD. If the maximum allowable force in any of the supports is 380 lbs, find the maximum weight W which could be supported, the force in all three supports, and the change in length of spring CE ( x-xo).
