Question: Problem 2 ( 3 5 points ) Create the Shear and Moment Diagram for the simply supported beam shown below. Show all of the calculations

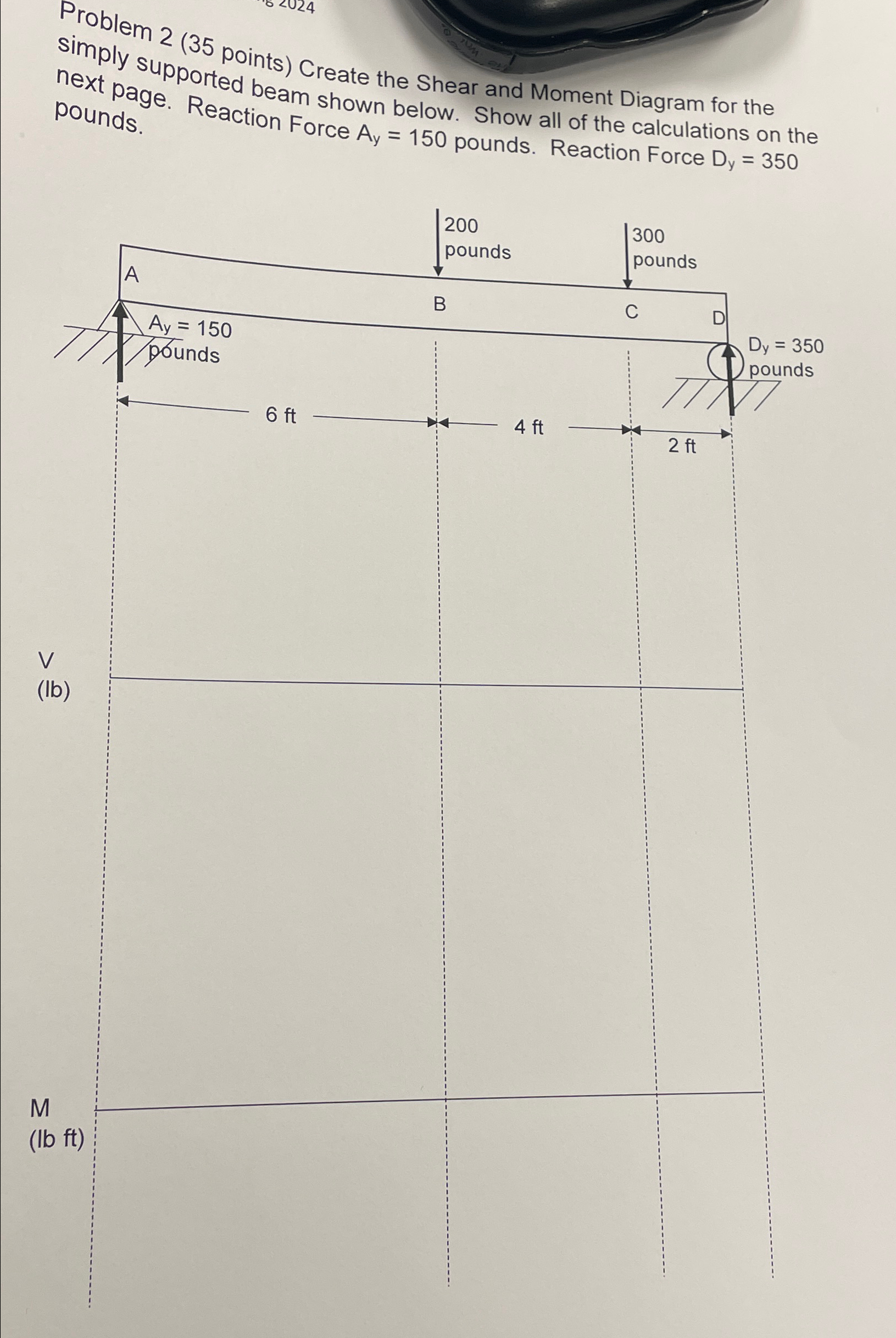

Problem 2(35 points) Create the Shear and Moment Diagram for the simply supported beam shown below. Show all of the calculations on the next page. Reaction Force Ay=150 pounds. Reaction Force Dy=350 pounds.
Problem 2 ( 3 5 points ) Create the Shear and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
