Question: Problem 2 ( 3 points ) Draw a Burgers circuit around the dislocation shown below. Clearly indicate the Burgers vector that you find. What type

Problem

2 (3

points

)

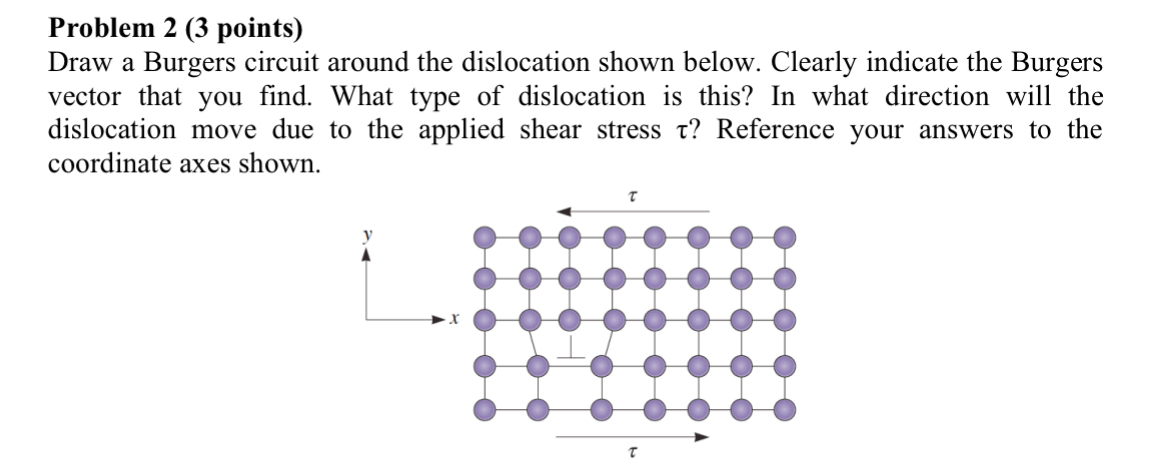

Draw a Burgers circuit around the dislocation shown below. Clearly indicate the Burgers vector that you find. What type of dislocation is this? In what direction will the dislocation move due to the applied shear stress

?

Reference your answers to the coordinate axes shown.

Problem 2 ( 3 points ) Draw a Burgers circuit

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
