Question: Problem 2 . 4 2 Consider the beam shown in ( Figure 1 ) . Suppose w 1 = 2 k N m and w

Problem 2.42

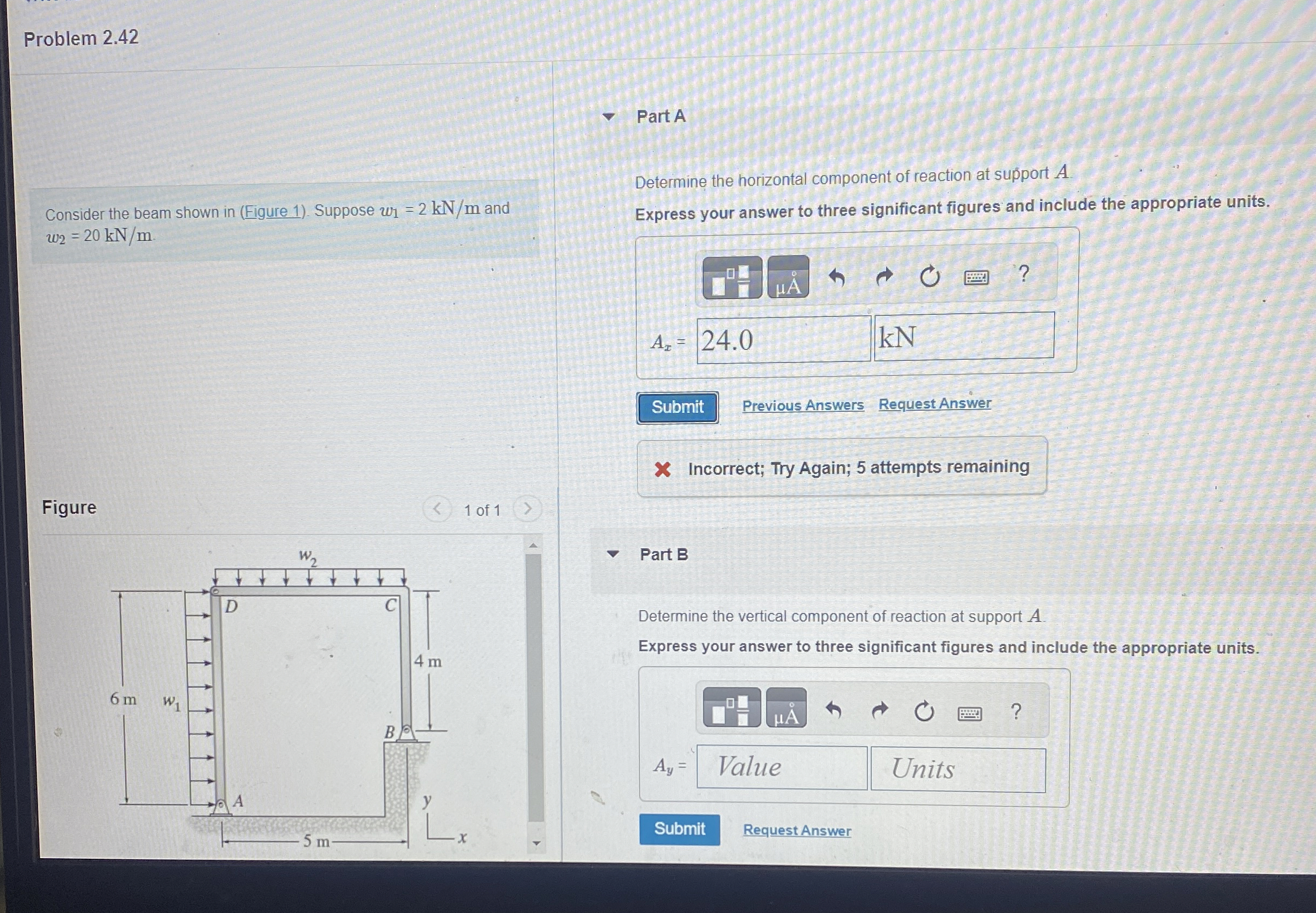

Consider the beam shown in (Figure 1). Suppose w1=2kNm and w2=20kNm
Part A
Determine the horizontal component of reaction at support A.
Express your answer to three significant figures and include the appropriate units.
Previous Answers
Request Answer
X Incorrect; Try Again; 5 attempts remaining
Figure
1 of 1
Part B
Determine the vertical component of reaction at support A.
Express your answer to three significant figures and include the appropriate units.
Ay=
Request Ans
Find the reactions at Ax,Ay,Bx,By
