Question: Problem 2 . 4 4 : A flowrate measuring device is installed in a horizontal pipe through which water is flowing. A U - tube

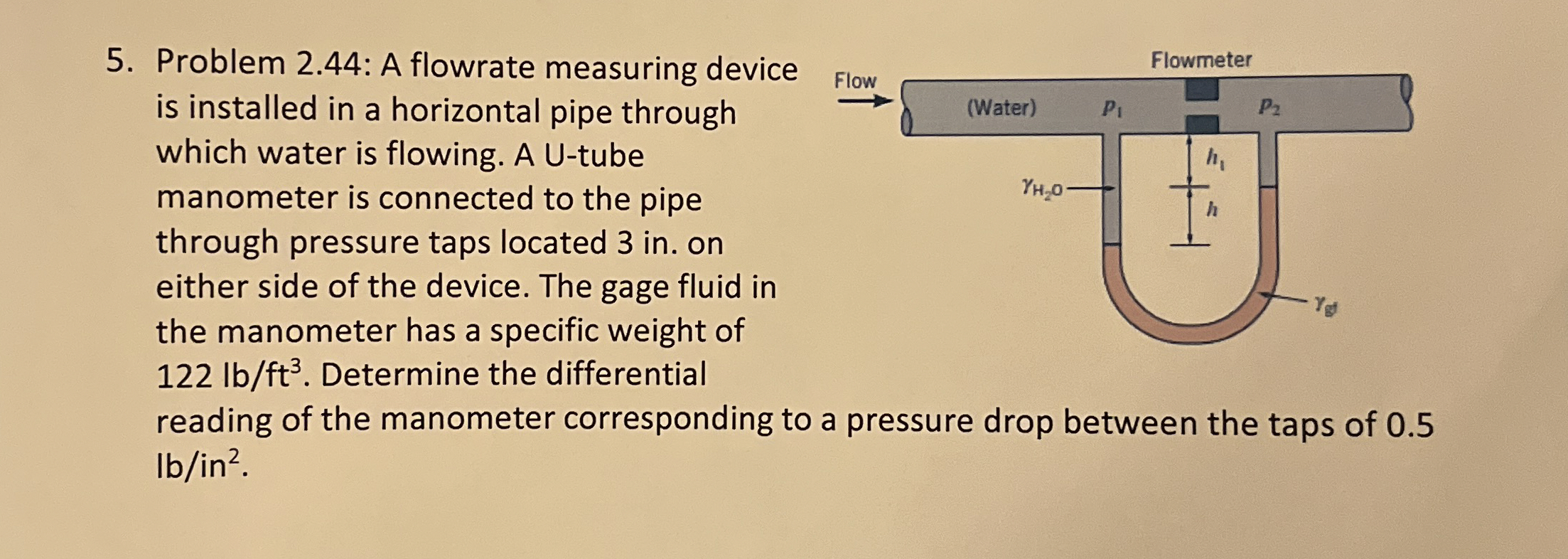

Problem 2.44: A flowrate measuring device is installed in a horizontal pipe through which water is flowing. A U-tube manometer is connected to the pipe through pressure taps located 3 in . on either side of the device. The gage fluid in the manometer has a specific weight of 122lbft3. Determine the differential reading of the manometer corresponding to a pressure drop between the taps of 0.5lbin2.
Problem 2 . 4 4 : A flowrate measuring device is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Will the gate in Problem 44 ever open? Problem 44 A flowrate measuring device is installed in a horizontal pipe through which water is flowing. A U-tube manometer is connected to the pipe through...

Q:

A flowrate measuring device is installed in a horizontal pipe through which water is flowing. A U-tube manometer is connected to the pipe through pressure taps located 3 in. on either side of the...
