Question: Problem 2 . 8 0 The bracket is subjected to the two forces shown Express each force in Cartesian vector form and then determine the

Problem 2.80

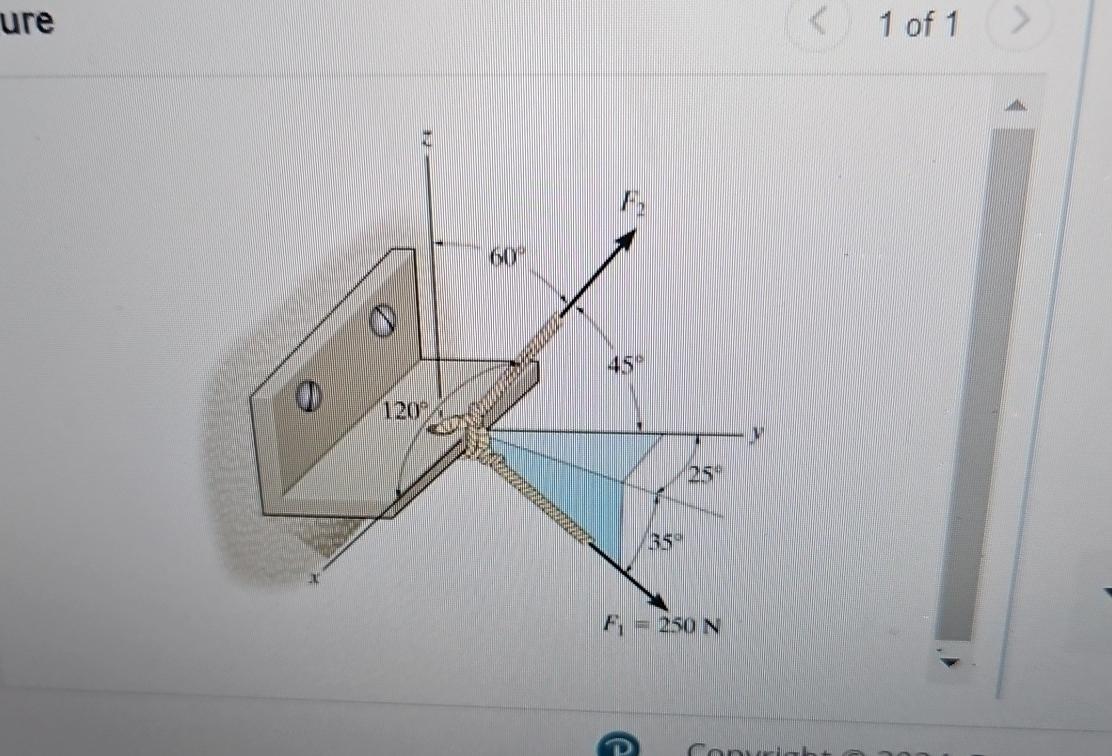

The bracket is subjected to the two forces shown Express each force in Cartesian vector form and then determine the resultant force Fn Given that F2=470N(Figure 1)
Find the three direction angles of
1 of 1
F1=250N
Problem 2 . 8 0 The bracket is subjected to the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
