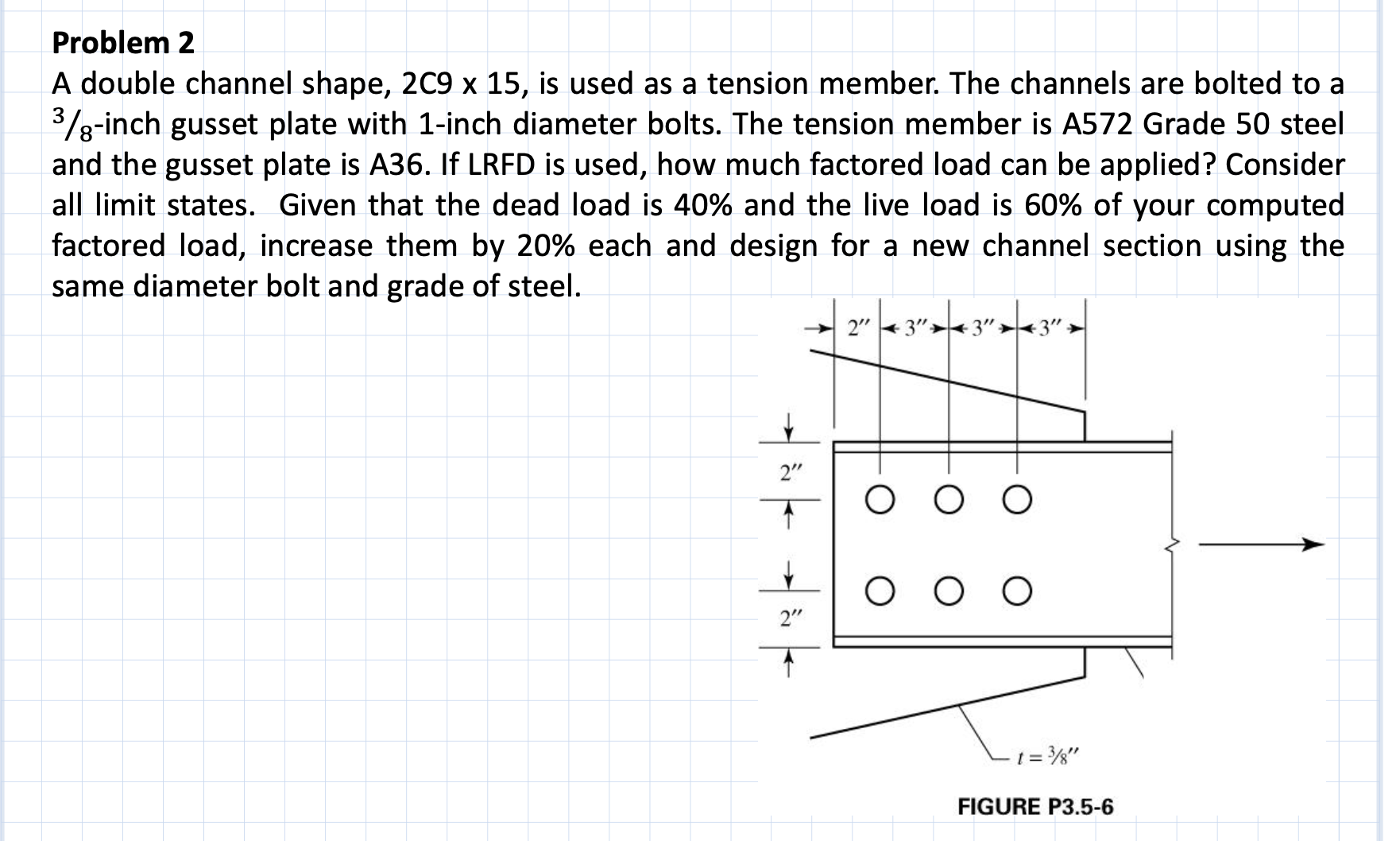

Problem $2$

A double channel shape, $C_{9}15,$ is used as a tension member. The channels are bolted to a

$\frac{3}{8}-$inch gusset plate with $1-$inch diameter bolts. The tension member is A$572$ Grade $50$ steel

and the gusset plate is A$36.$ If LRFD is used, how much factored load can be applied? Consider

all limit states. Given that the dead load is $40\%$ and the live load is $60\%$ of your computed

factored load, increase them by $20\%$ each and design for a new channel section using the

same diameter bolt and grade of steel.

FIGURE P$3\mathrm{.}5-6$
