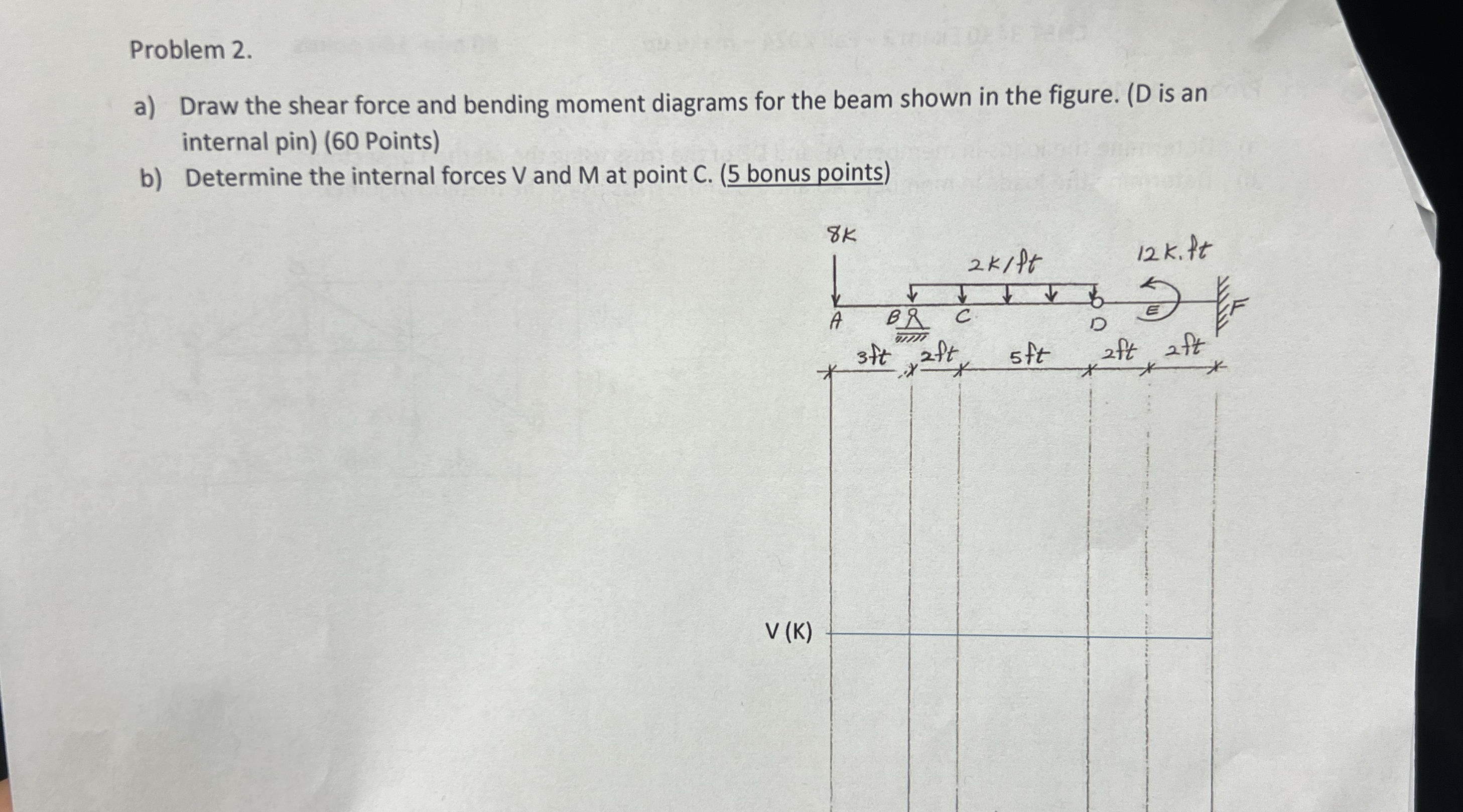

Problem $2.$

a$)$ Draw the shear force and bending moment diagrams for the beam shown in the figure. $(D$ is an internal pin$)(60$ Points$)$

b$)$ Determine the internal forces $V$ and $M$ at point $C.(5$ bonus points$)$
