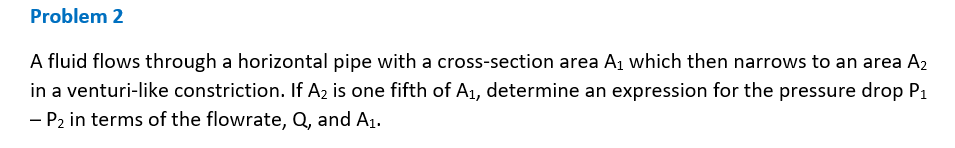

Question: Problem 2 A fluid flows through a horizontal pipe with a cross-section area A, which then narrows to an area Az in a venturi-like constriction.

Problem 2 A fluid flows through a horizontal pipe with a

Problem 2 A fluid flows through a horizontal pipe with a cross-section area A, which then narrows to an area Az in a venturi-like constriction. If Az is one fifth of Ai, determine an expression for the pressure drop P1 P2 in terms of the flowrate, Q, and Al
