Question: Problem 2 : a ) List all zero - force members ( ZFMs ) b ) Determine the force in members C D , C

Problem 2:
a) List all zero-force members (ZFMs)

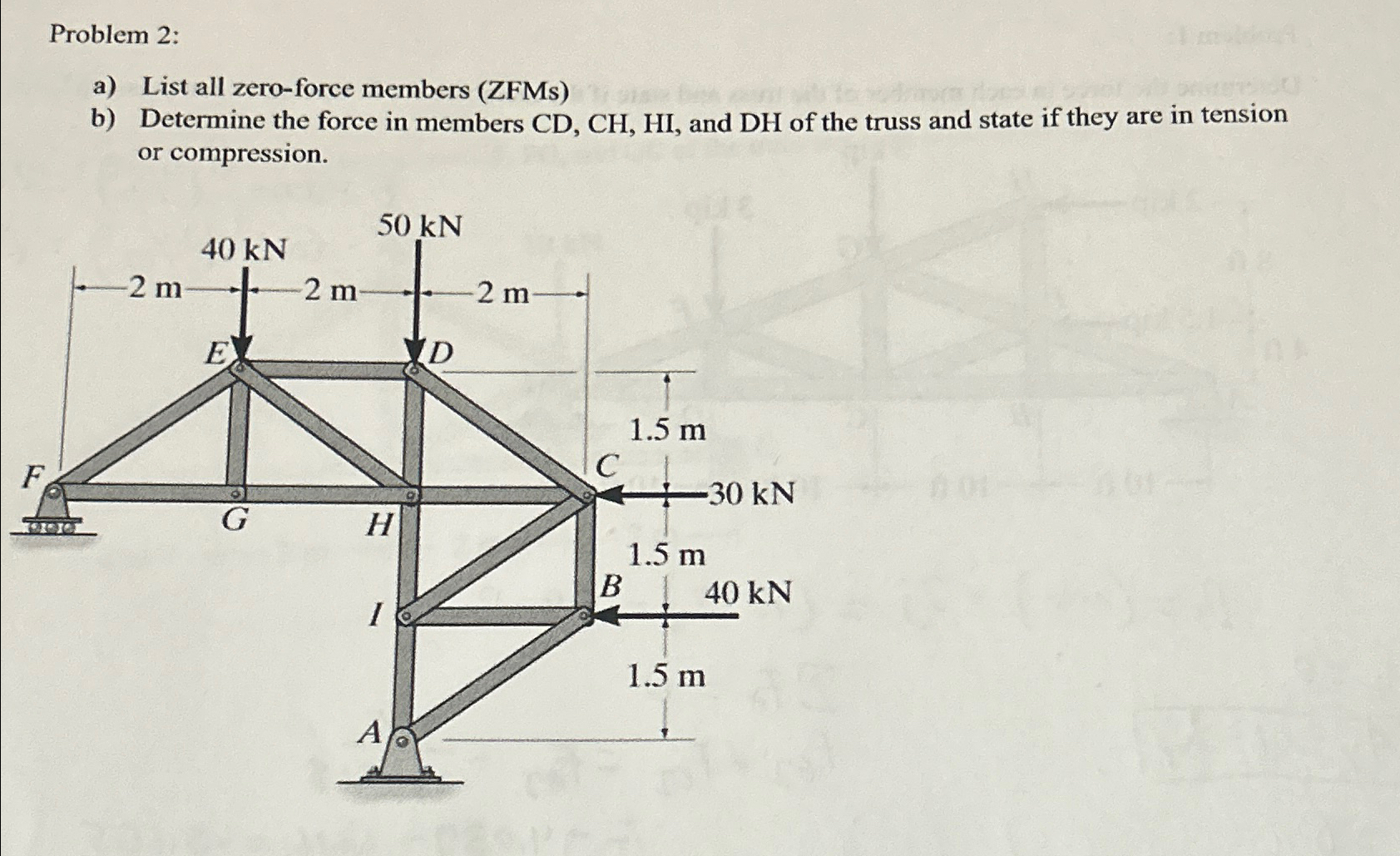

b) Determine the force in members CD,CH,HI, and DH of the truss and state if they are in tension or compression.
Problem 2 : a ) List all zero - force members (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
