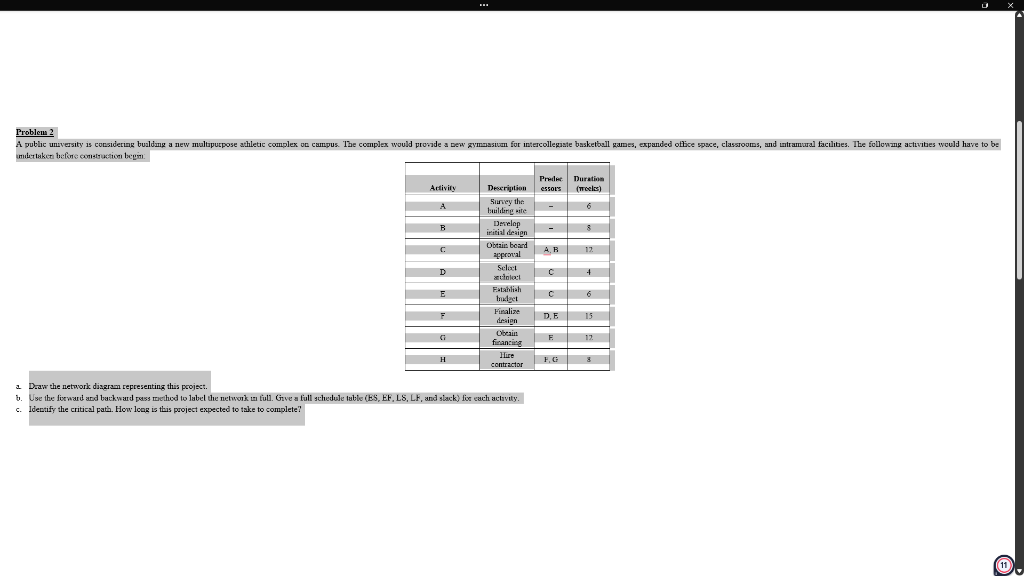

Problem 2

A public university is considering building a new multipurpose athletic complex on campus. The complex would provide a new gymnasium for intercollegiate basketball games, expanded office space, classrooms, and intramural facilities. The following activities would have to be undertaken before construction begin:

Activity	Description	Predecessors	Duration (weeks)
A	Survey the building site		6
B	Develop initial design		8
C	Obtain board approval	A, B	12
D	Select architect	C	4
E	Establish budget	C	6
F	Finalize design	D, E	15
G	Obtain financing	E	12
H	Hire contractor	F, G	8

1. Draw the network diagram representing this project.
2. Use the forward and backward pass method to label the network in full. Give a full schedule table (ES, EF, LS, LF, and slack) for each activity.
3. Identify the critical path. How long is this project expected to take to complete?

a. Daw the network disgram representing this project. b. Use the firward and backward pass method to label the network wa tull. Grve a full achedule table (ES, EF, LS, LF, and shack) fise each actavity. c. Idectify the critical path. How leag is this project expected to take to complete
