Question: Problem 2 : A W 4 1 0 4 6 beam of 3 5 0 W steel is simply supported over a ( 1

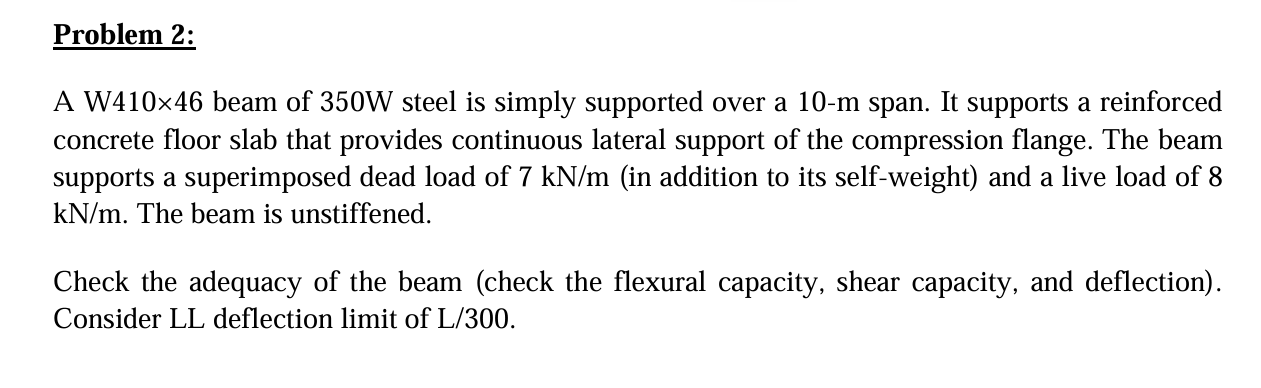

Problem 2:
A W41046 beam of 350 W steel is simply supported over a \(10-\mathrm{m}\) span. It supports a reinforced concrete floor slab that provides continuous lateral support of the compression flange. The beam supports a superimposed dead load of \(7\mathrm{kN}/\mathrm{m}\)(in addition to its self-weight) and a live load of 8\(\mathrm{kN}/\mathrm{m}\). The beam is unstiffened.
Check the adequacy of the beam (check the flexural capacity, shear capacity, and deflection). Consider LL deflection limit of L/300.
Problem 2 : A W 4 1 0 4 6 beam of 3 5 0 W steel
