Question: Problem 2 : A WT 6 2 5 tension member of A 9 9 2 steel is connected to a 5 8 - in .

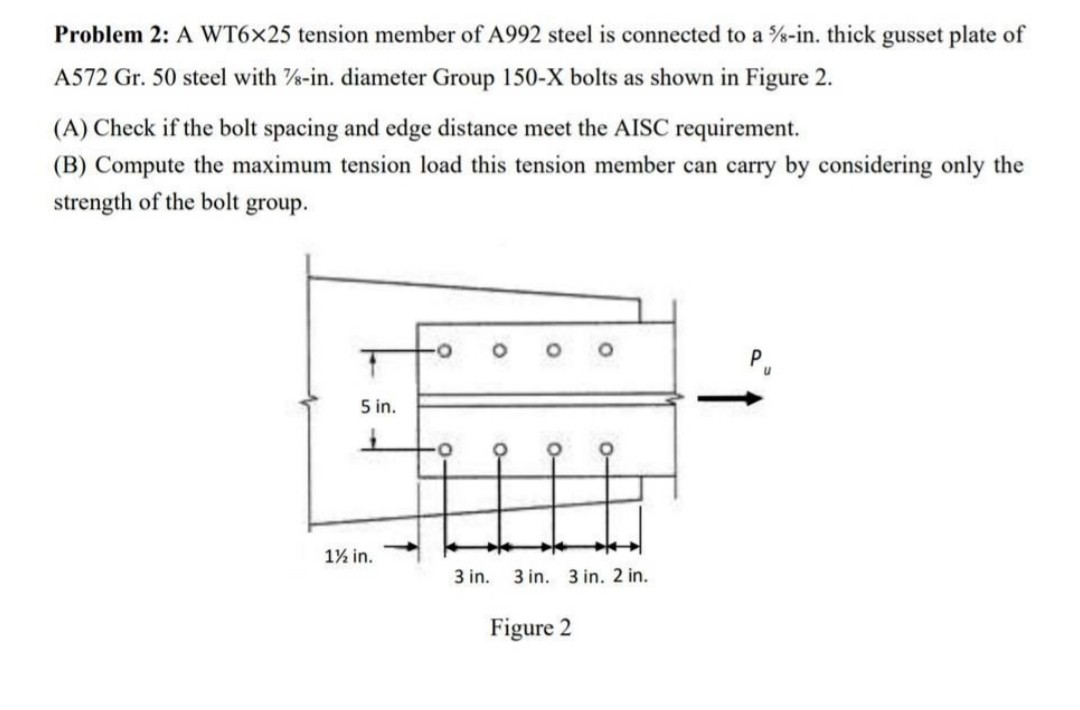

Problem 2: A WT625 tension member of A992 steel is connected to a 58-in. thick gusset plate of A572 Gr.50 steel with 78-in. diameter Group 150-X bolts as shown in Figure 2.
(A) Check if the bolt spacing and edge distance meet the AISC requirement.
(B) Compute the maximum tension load this tension member can carry by considering only the strength of the bolt group.
Problem 2 : A WT 6 2 5 tension member of A 9 9 2
