Question: Problem 2 ( Boolean Function Table ) . Solve each of the following problem constructing the necessary Truth table. A four input function z (

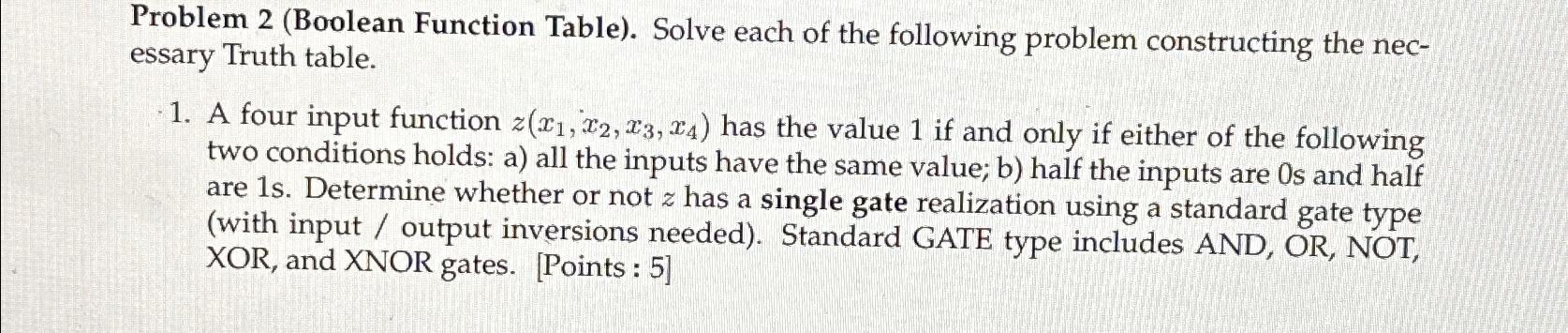

Problem 2(Boolean Function Table). Solve each of the following problem constructing the necessary Truth table.
A four input function z(x1,x2,x3,x4) has the value 1 if and only if either of the following two conditions holds: a) all the inputs have the same value; b) half the inputs are 0s and half are 1s. Determine whether or not z has a single gate realization using a standard gate type (with input / output inversions needed). Standard GATE type includes AND, OR, NOT, XOR, and XNOR gates. [Points : 5]
 Problem 2(Boolean Function Table). Solve each of the following problem constructing
