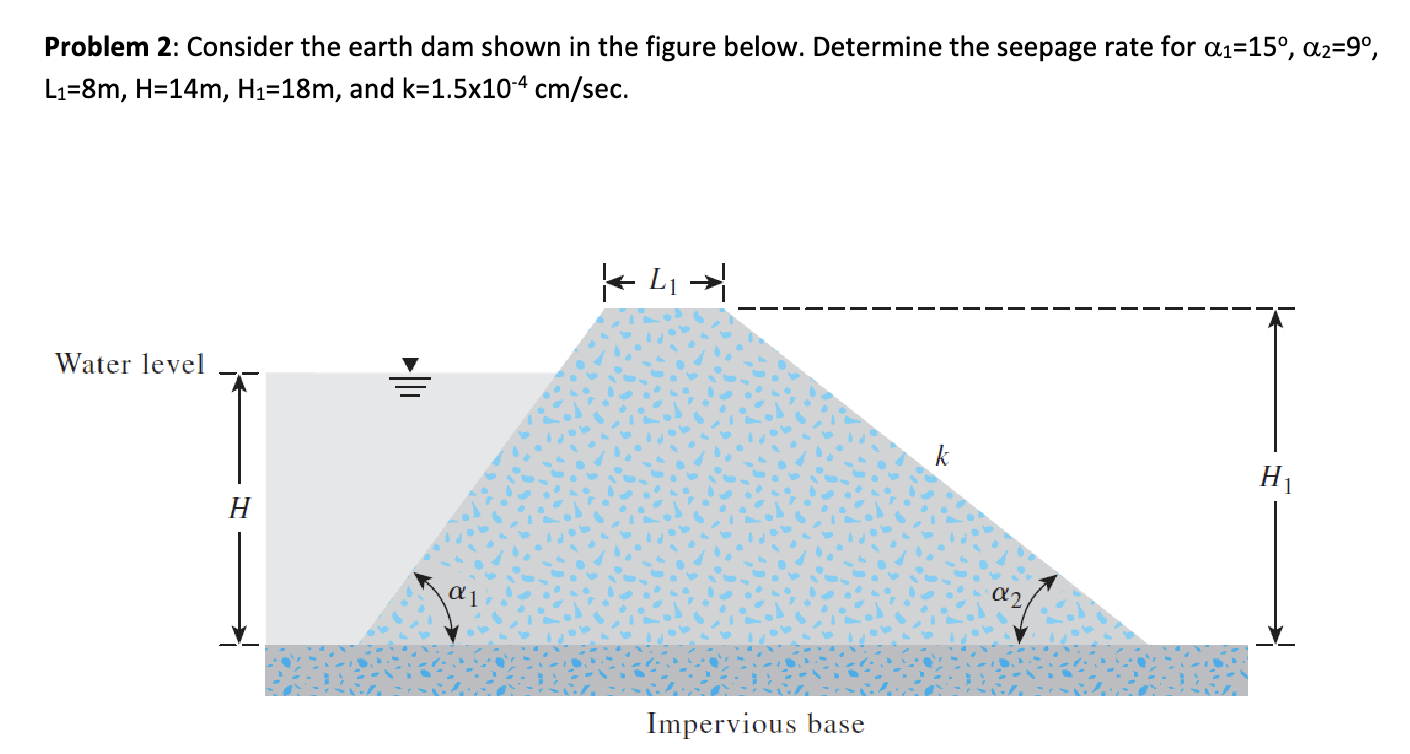

Question: Problem 2 : Consider the earth dam shown in the figure below. Determine the seepage rate for 1 = 1 5 , 2 = 9

Problem 2: Consider the earth dam shown in the figure below. Determine the seepage rate for 1=15,2=9,
L1=8m,H=14m,H1=18m, and k=1.510-4cmsec.
Problem 2 : Consider the earth dam shown in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
