Question: Problem 2 ) Design rectangular section for the beam, loads, and values shown, Beam weight is not included in the loads given. Show sketches of

Problem 2)

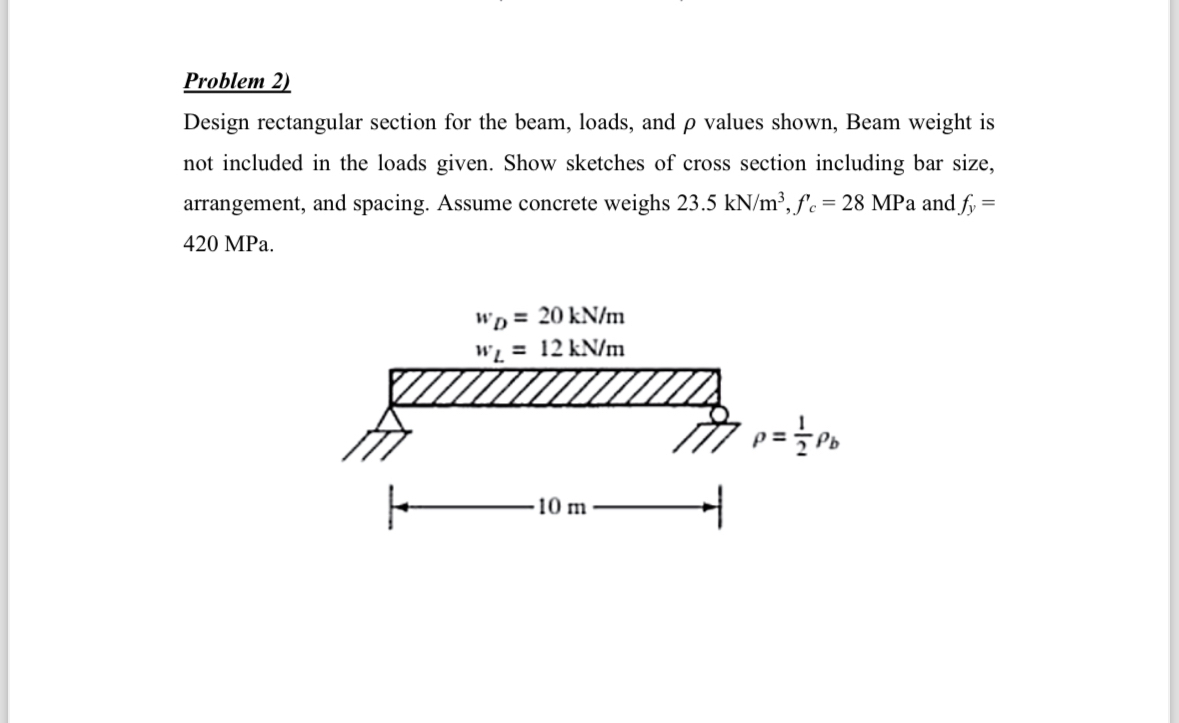

Design rectangular section for the beam, loads, and values shown, Beam weight is
not included in the loads given. Show sketches of cross section including bar size,
arrangement, and spacing. Assume concrete weighs 23.5kNm3,fc'=28MPa and fy=
420 MPa .
Problem 2 ) Design rectangular section for the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
