Question: Problem 2 : Determine ( a ) deflection and slope at the point D of the prismatic beam for the loading shown. ( b )

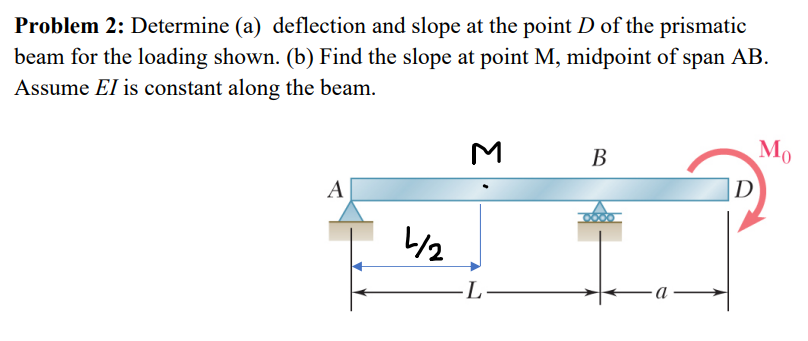

Problem 2: Determine (a) deflection and slope at the point D of the prismatic
beam for the loading shown. (b) Find the slope at point M, midpoint of span AB.
Assume EI is constant along the beam.
Use Castigliano's Theorem to solve.
Problem 2 : Determine ( a ) deflection and slope

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
