Question: Problem 2 . Fig 2 shows a CE amplifier. Assume beta _ ( F ) = 1 0 0 , V _ ( A

Problem 2. Fig 2 shows a CE amplifier. Assume \beta _(F)=100,V_(A)=50V.
aV_(A)(V_(A)=\infty )
b,
and r_(o) R_(in ) and the output resitance, R_(out )
dA_(v)=(v_(o))/(v_(i))

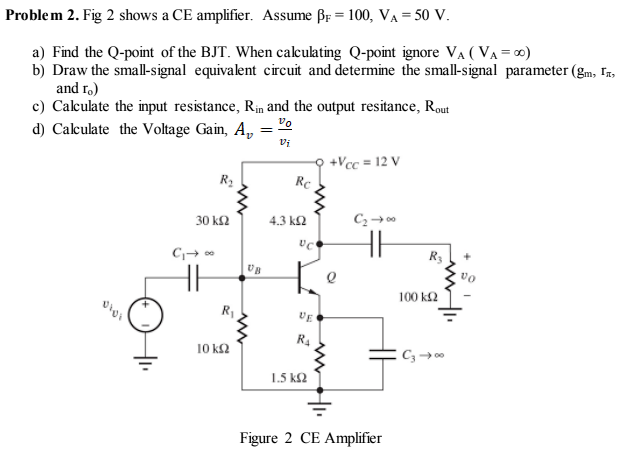

Figure 2 CE Amplifier
Problem 2 . Fig 2 shows a CE amplifier. Assume \

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
