Question: Problem 2 ( Figure B ) . Draw the free - body diagram and determine the reactions at the support A and B . Support

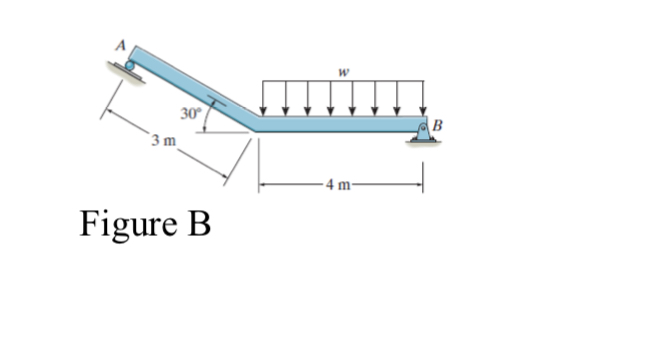

Problem 2(Figure B). Draw the free-body diagram and determine the reactions at the support A and B. Support A is roller and B is pin. Hint: Study the example on Page 226 of the pdf version of the textbook edition). The reaction always acts perpendicular to the surface.
nowe
Problem 2 ( Figure B ) . Draw the free - body

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
