Question: Problem 2 For the truss shown: a ) List all zero force members b ) Determine the force in members ( mathrm {

Problem 2

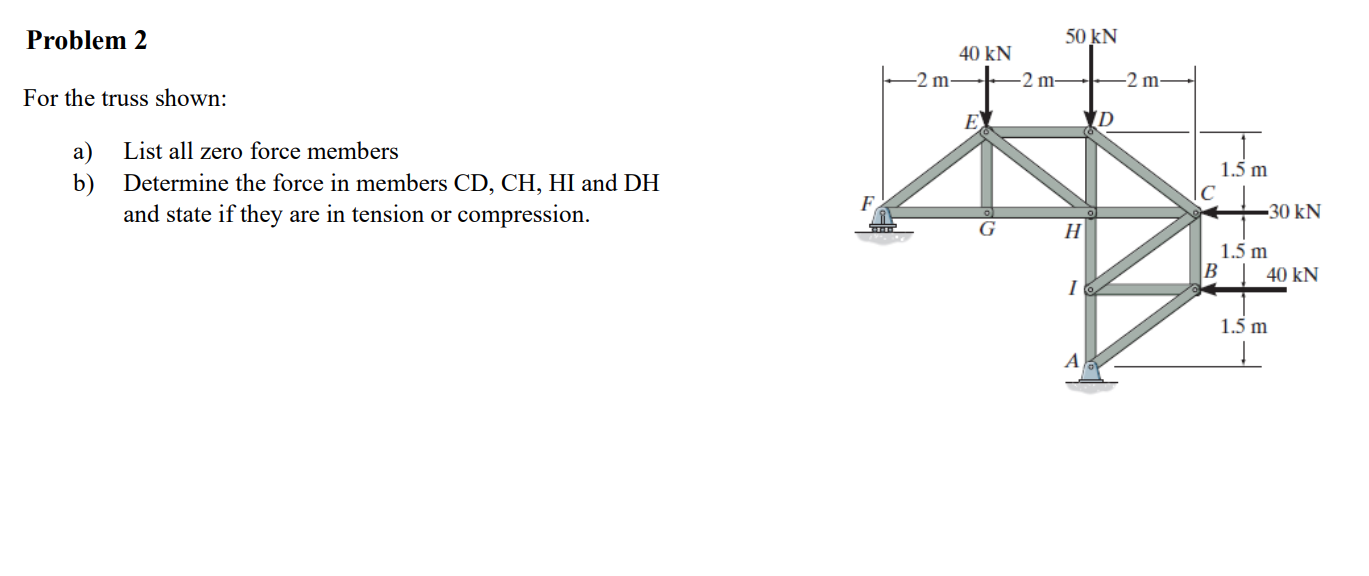

For the truss shown:
a) List all zero force members
b) Determine the force in members \(\mathrm{CD},\mathrm{CH},\mathrm{HI}\) and DH and state if they are in tension or compression.
