Question: Problem 2 : Force method - Frame The indeterminate frame structure shown below, subjected to a single lateral load of 2 5 0 kN at

Problem 2: Force method - Frame

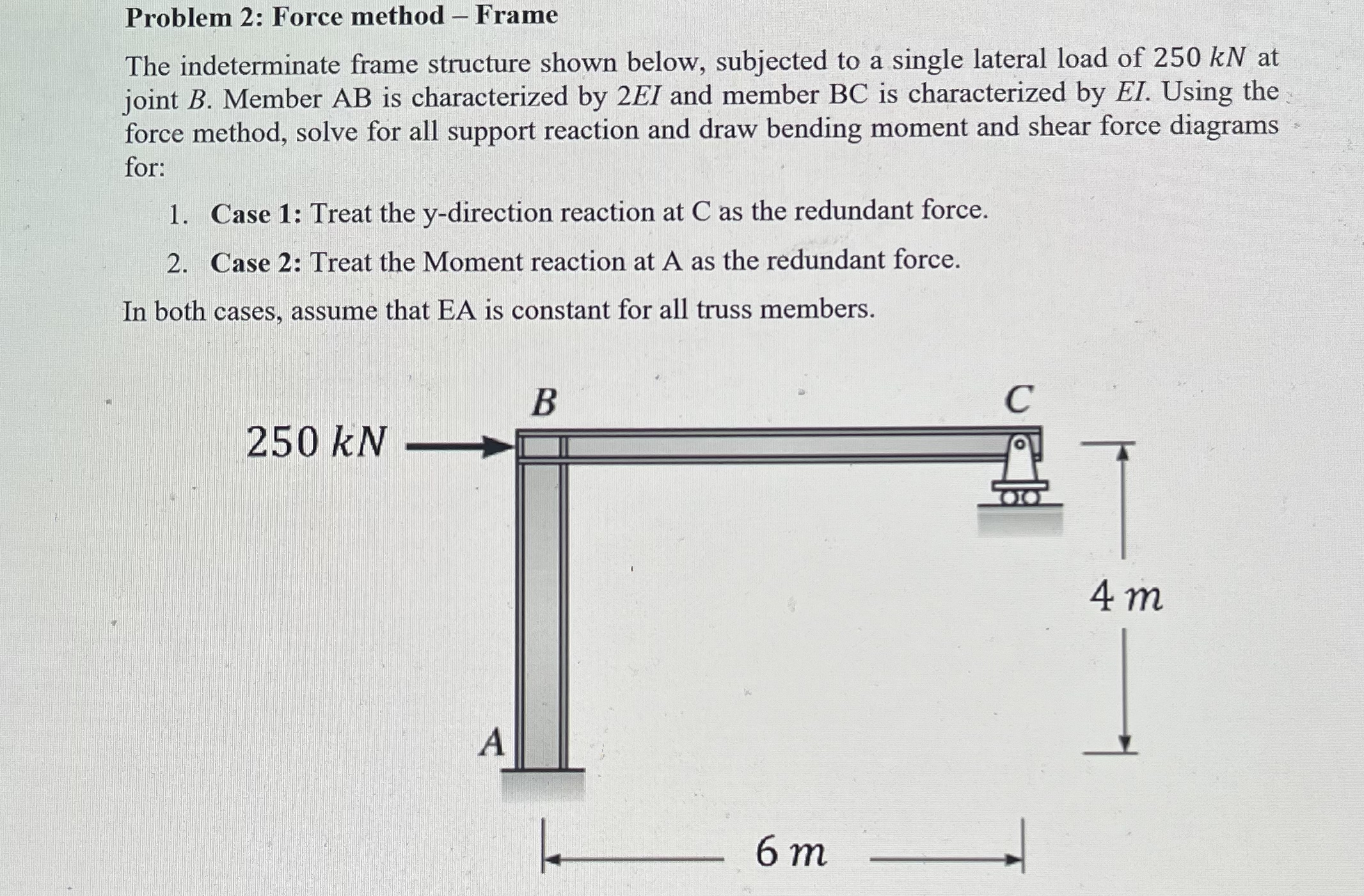

The indeterminate frame structure shown below, subjected to a single lateral load of 250 kN at joint B. Member AB is characterized by 2EI and member BC is characterized by EI. Using the force method, solve for all support reaction and draw bending moment and shear force diagrams for:
Case 1: Treat the y -direction reaction at C as the redundant force.
Case 2: Treat the Moment reaction at A as the redundant force.
In both cases, assume that EA is constant for all truss members.
Problem 2 : Force method - Frame The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
