Question: Problem [ 2 ] Replace the force and couple moment system acting on the overhang beam by a resultant force and couple moment at point

Problem [2]

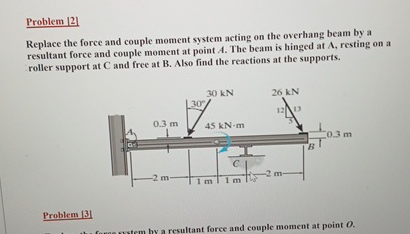

Replace the force and couple moment system acting on the overhang beam by a resultant force and couple moment at point A. The beam is hinged at A, resting on a roller support at C and free at B. Also find the reactions at the supports.
Problem [3]
Problem [ 2 ] Replace the force and couple moment

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the force and couple moment system acting on the overhang beam by a resultant force, and specify its location along AB measured from point A. 0.3 m -2 m- 30 kN 30 45 kN m 1 m 26 kN 12 13 -2...

Q:

*4-124. Replace the force and couple moment system acting on the overhang beam by a resultant force, and specify its location along AB measured from point A. 30 kN 30% 26 kN 12 13 0.3 m 45 kNm 5 0.3...

Q:

Replace the force and couple moment system acting on the overhang beam by a resultant force, and specify its location along AB measured from pointA. 30 kN 26 kN 30 1213 0.3 m 45 kN-m 0.3 m -2 m -2 m...

Q:

Problem 4 . 1 0 8 Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A ( Figure 1 ) . Suppose that F 1 = 3 0 0 N , F 2 = 1 0 0 N...

Q:

The force F = { - 6 i + 3 j + 1 1 k } N is applied to the block shown in . Part A Determine the moment of the force F about the diagonal A F of the rectangular block. Express your answers in newton -...

Q:

Replace the force and couple moment system acting on the overhang beam by a resultant force and couple moment at pointA. 30 kN 30 26 kN 1213 0.3 m 45 kN-m 0.3 m -2 m -2 m 1m|1m

Q:

4 - 1 0 9 . Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point \ ( O \ ) 4 - 1 0 9 . Replace the force and couple moment system...

Q:

* 4 - 1 0 8 . Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A . 4 - 1 0 9 . Replace the force and couple moment system...

Q:

3 - 9 0 . Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A . 3 - 9 1 . Replace the force and couple moment system acting on...

Q:

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A (Figure 1). Suppose that F = 660 N, F = 280 N, and M = 300 N. m. Determine...
