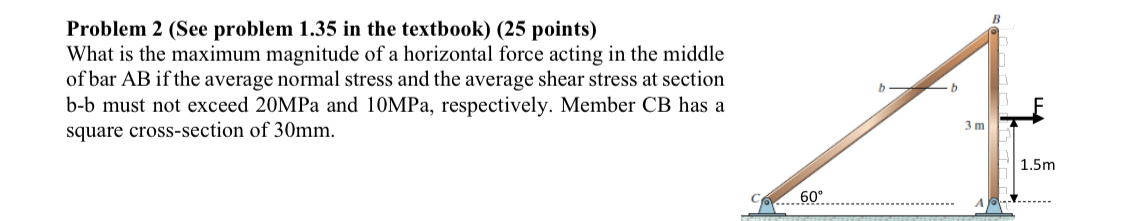

Question: Problem 2 ( See problem 1 . 3 5 in the textbook ) ( 2 5 points ) What is the maximum magnitude of a

Problem

2 (

See problem

1.35

in the textbook

) (25

points

)

What is the maximum magnitude of a horizontal force acting in the middle of bar AB if the average normal stress and the average shear stress at section b

-

b must not exceed

20

MPa and

10

MPa

,

respectively. Member CB has a square cross

-

section of

30

.

Problem 2 ( See problem 1 . 3 5 in the textbook )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
