Question: PROBLEM 2 Select an equal angle tension member 5 . 5 m long to carry a service dead load of 1 5 0 kN and

PROBLEM 2

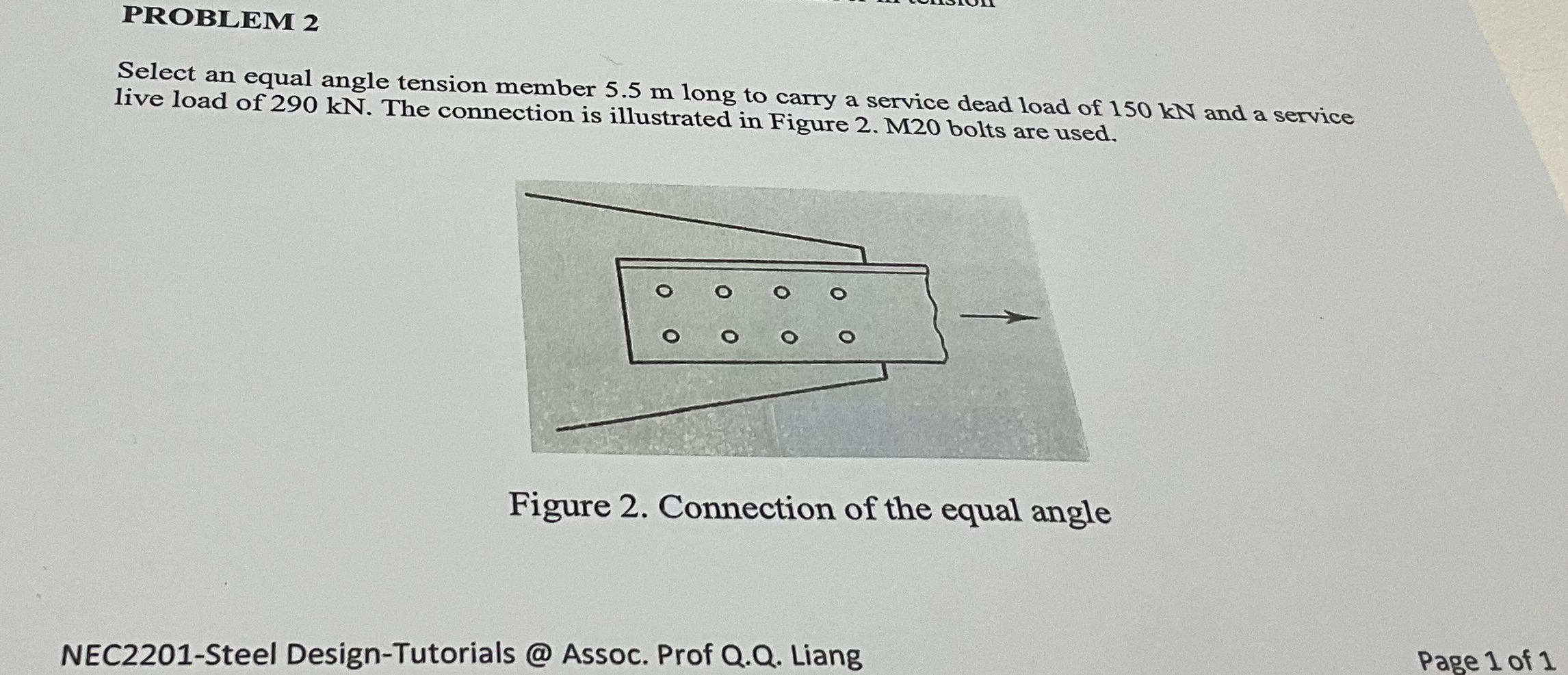

Select an equal angle tension member 5.5 m long to carry a service dead load of 150 kN and a service live load of 290 kN . The connection is illustrated in Figure 2. M20 bolts are used.
Figure 2. Connection of the equal angle
PROBLEM 2 Select an equal angle tension member 5

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
