Question: Problem 2: Show all your work to get the full credit. Include proper units and notation. In the frame below, a) Determine the reactions at

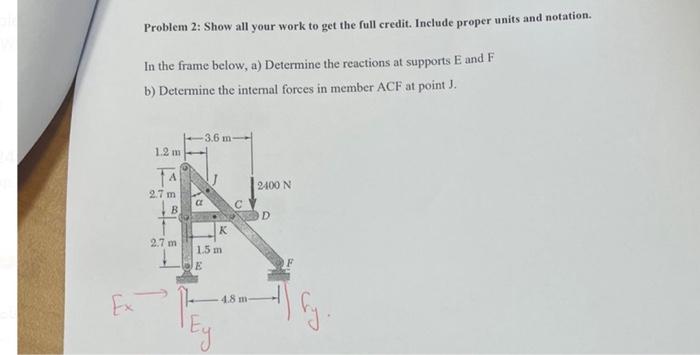

Problem 2: Show all your work to get the full credit. Include proper units and notation. In the frame below, a) Determine the reactions at supports E and F b) Determine the internal forees in member ACF at point J. Problem 2: Show all your work to get the full credit. Include proper units and notation. In the frame below, a) Determine the reactions at supports E and F b) Determine the internal forees in member ACF at point J
