Question: Problem 2 . The beam is subjected to a maximum positive internal bending moment of M = 8 k - f t . Determine the

Problem 2.

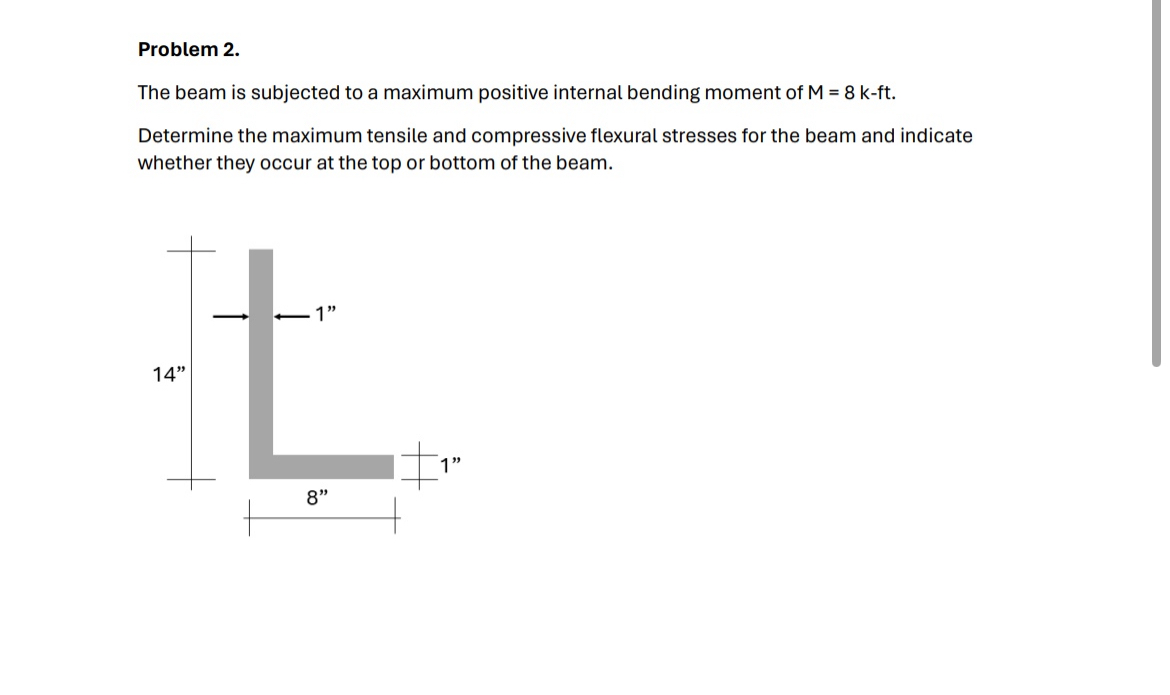

The beam is subjected to a maximum positive internal bending moment of M=8k-ft.
Determine the maximum tensile and compressive flexural stresses for the beam and indicate whether they occur at the top or bottom of the beam.
Problem 2 . The beam is subjected to a maximum

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
