Question: PROBLEM # 2 : The cable segments support the loading shown. Determine the distance y c from the force at C to point D .

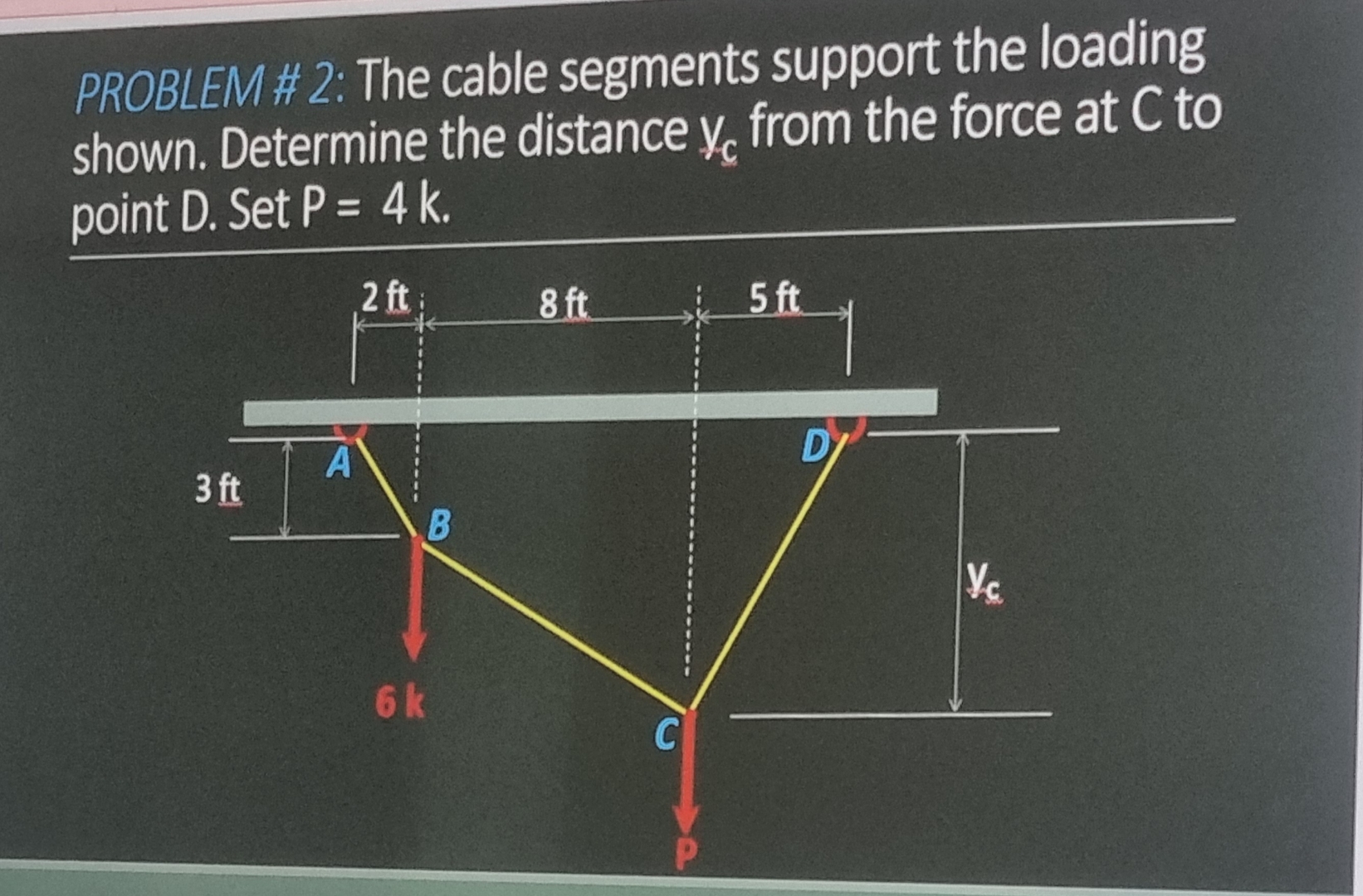

PROBLEM # 2: The cable segments support the loading shown. Determine the distance yc from the force at C to point D. Set P=4k.
PROBLEM # 2 : The cable segments support the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

The cable segments support the loading shown. Determine the horizontal distance xB from the force at B to point A. Set P = 40lb. 5ft ft 60 lb 2'ft D. -3 ft-

Q:

The cable segments support the loading shown. Determine the magnitude of the vertical force P so that y C = 6 ft. 3 ft 2 ft IB 6 k 8 ft- P Prob. 5-6 -5 ft- C D

Q:

The cable segments support the loading shown. Determine the magnitude of the horizontal force P so that xB = 6ft. 5'ft ft 60 lb 2 ft D. -3 ft-

Q:

a) The cable segments support the loading shown in Figure 1. By using appropriate technique, evaluate the tension in the cable and distance XB from the force at B to point A where the P set as 200N....

Q:

The cable supports the loading shown. Determine the distance xB the force at point B acts from A. Set P =40lb. 5ft 8ft 2 ft 30 lb 3 ft-

Q:

The cable supports the loading shown. Determine the distance xB the force at point B acts from A. Given: P = 40 lb F = 30 lb a = 5 ft b = 8 ft c = 2 ft d = 3 ft e = 3 f = 4 |
