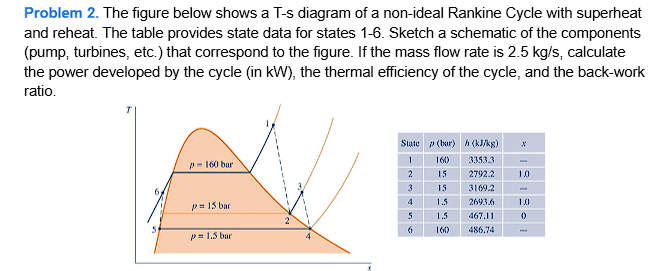

Problem $2.$ The figure below shows a T$-$s diagram of a non$-$ideal Rankine Cycle with superheat and reheat. The table provides state data for states $1-6.$ Sketch a schematic of the components $($pump$,$ turbines, etc.$)$ that correspond to the figure. If the mass flow rate is $\backslash (2\mathrm{.}5\backslash$mathrm$\{$~kg$\}/\backslash$mathrm$\{$s$\}\backslash ),$ calculate the power developed by the cycle $($in kW$),$ the thermal efficiency of the cycle, and the back$-$work ratio.
