Question: Problem 2 : The figure below shows the dimensions ( in cm ) a , b , c , and d , of a metal

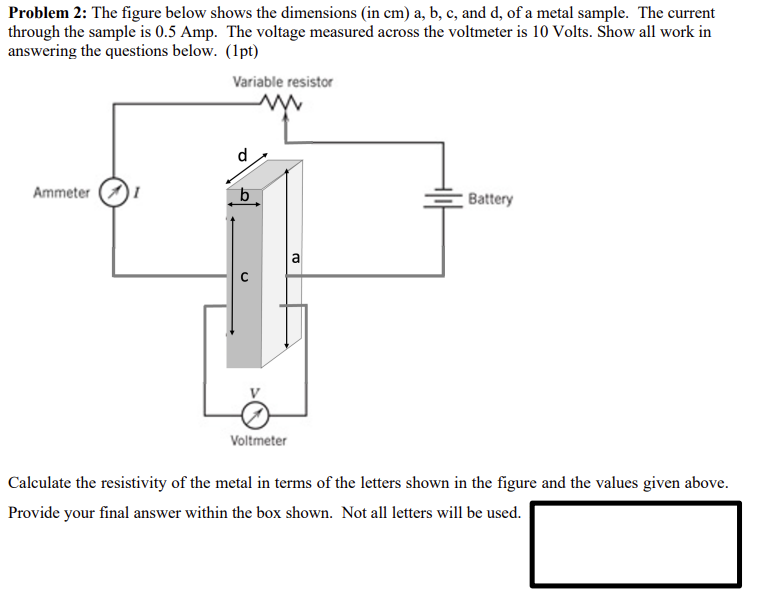

Problem 2: The figure below shows the dimensions (in cm ) a,b,c, and d, of a metal sample. The current
through the sample is 0.5 Amp . The voltage measured across the voltmeter is 10 Volts. Show all work in
answering the questions below.
Calculate the resistivity of the metal in terms of the letters shown in the figure and the values given above.
Provide your final answer within the box shown. Not all letters will be used.
Problem 2 : The figure below shows the dimensions

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
