Question: Problem 2 : The simply supported beam shown in figure below consists of a W 5 3 0 6 6 structural steel wide - flange

Problem 2:

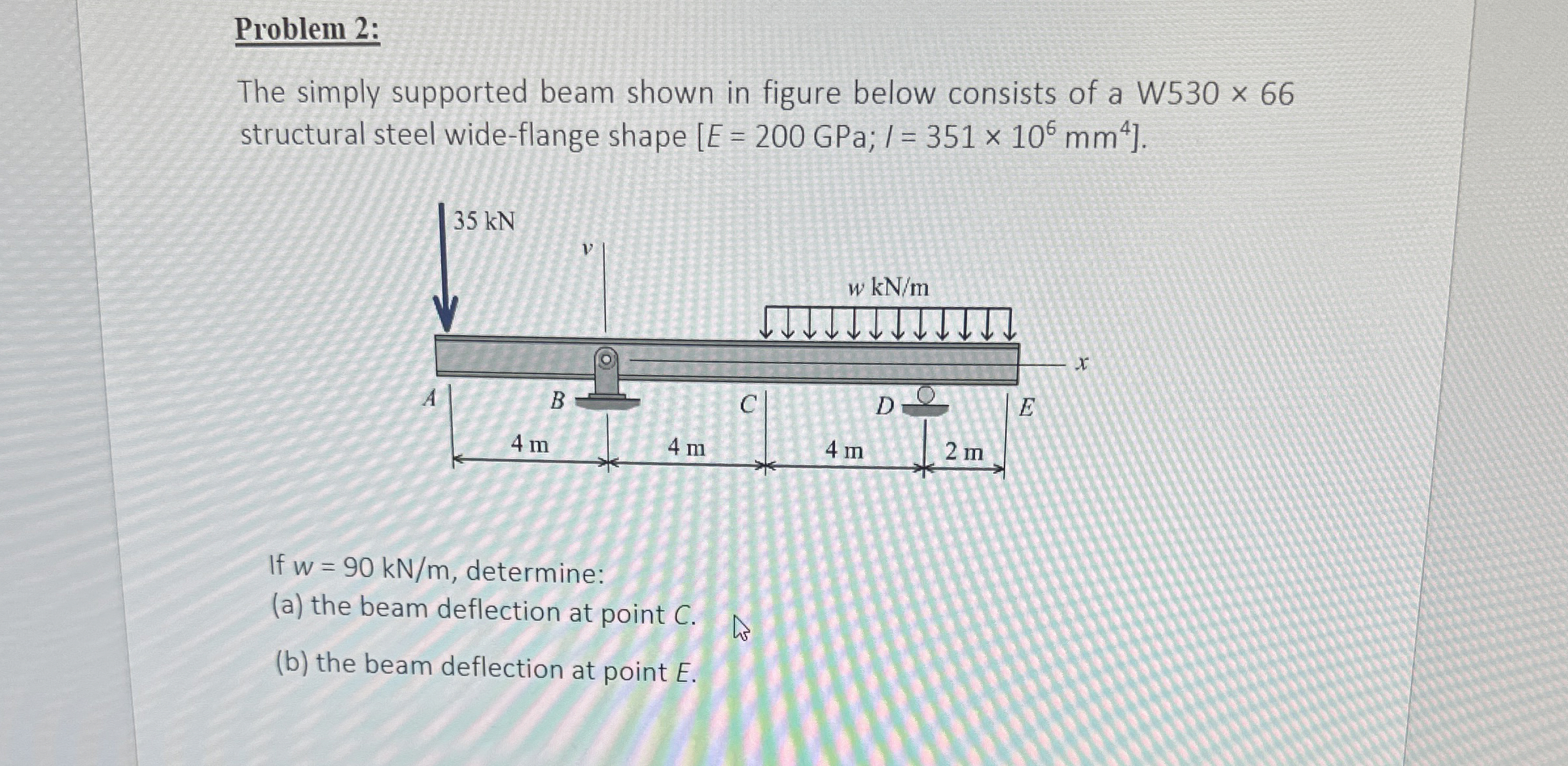

The simply supported beam shown in figure below consists of a W53066 structural steel wide-flange shape E=200GPa;I=351106mm4.
If w=90kNm, determine:
(a) the beam deflection at point C.
(b) the beam deflection at point E.
Problem 2 : The simply supported beam shown in

Step by Step Solution

There are 3 Steps involved in it
