Question: Problem 2 The solid shaft is used to transmit the torque shown. If the absolute maximum shear stress allowed in the shaft is 2 5

Problem 2

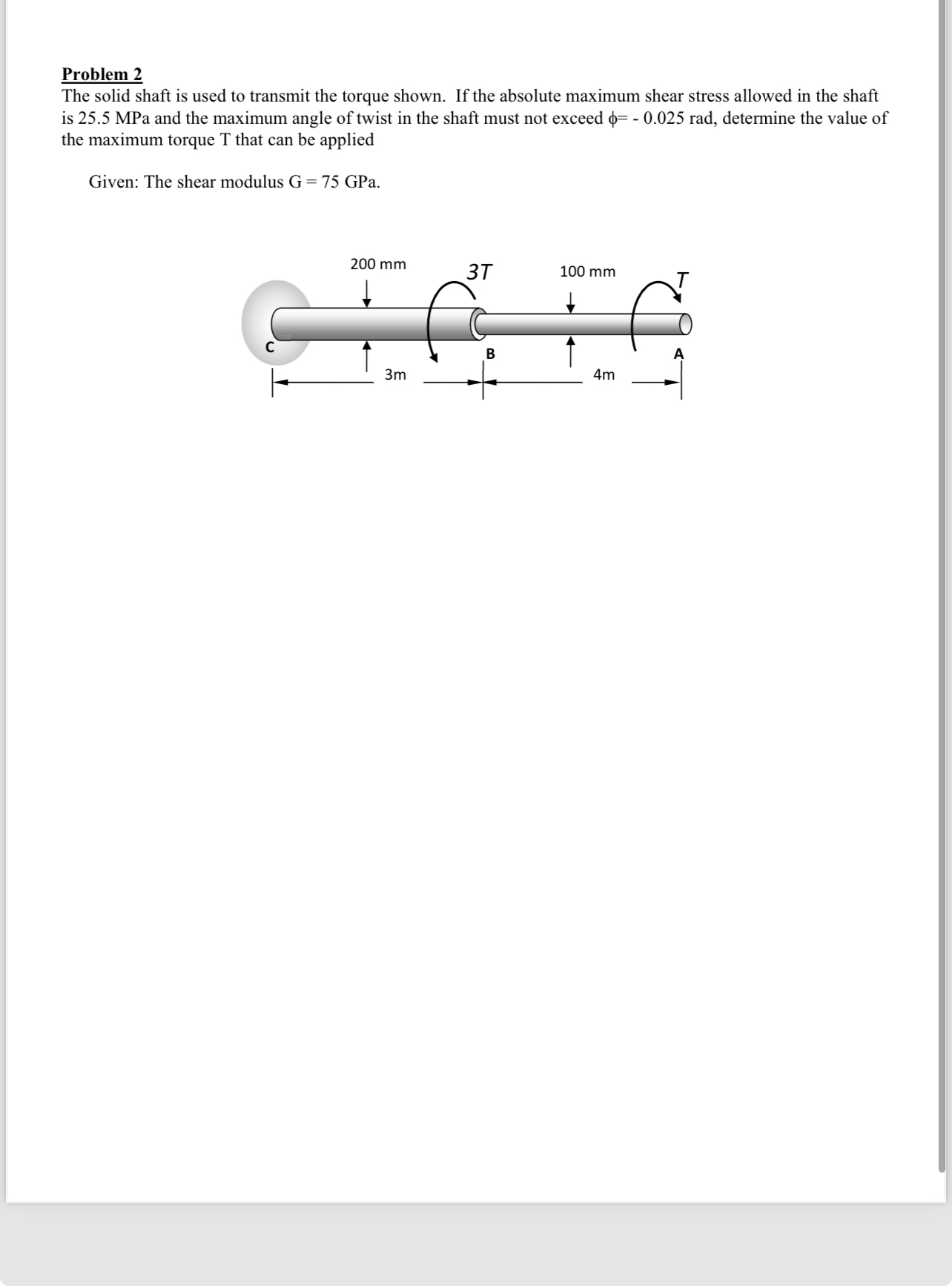

The solid shaft is used to transmit the torque shown. If the absolute maximum shear stress allowed in the shaft is 25.5 MPa and the maximum angle of twist in the shaft must not exceed =-0.025rad, determine the value of the maximum torque T that can be applied
Given: The shear modulus G=75GPa.
