Question: Problem 2 [ Using V - W - M ] . Calculate the deflection at C . Beam Size A B = 2 0 0

Problem 2

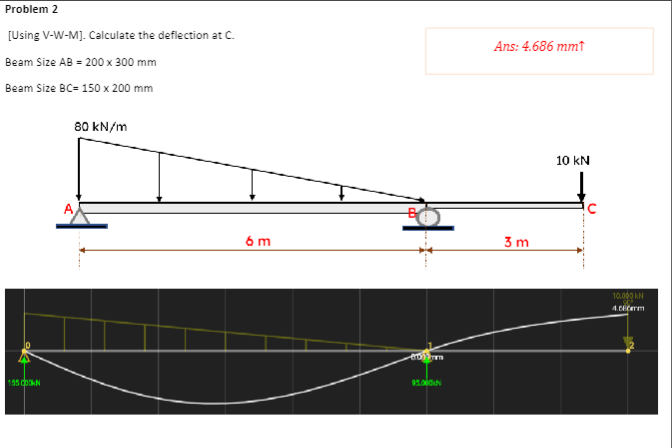

[Using V-W-M]. Calculate the deflection at C.
Beam Size AB=200300mm
Ans: 4.686marr
Beam Size BC=150200mm
Problem 2 [ Using V - W - M ] . Calculate the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
