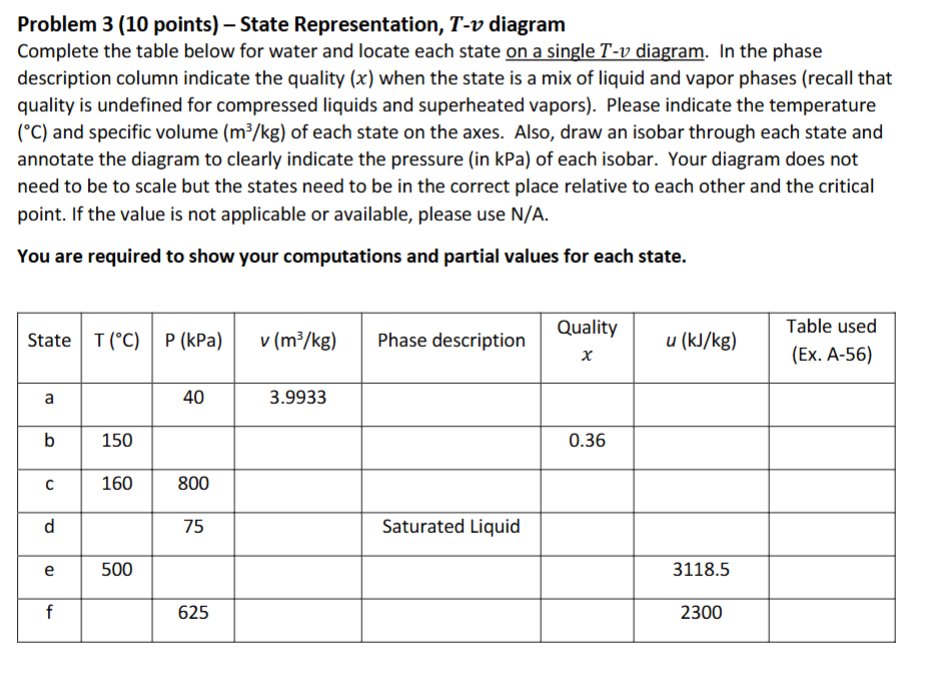

Problem $3(10$ points$)-$ State Representation, $T-v$ diagram

Complete the table below for water and locate each state on a single $T-v$ diagram. In the phase

description column indicate the quality $(x)$ when the state is a mix of liquid and vapor phases $($recall that

quality is undefined for compressed liquids and superheated vapors$).$ Please indicate the temperature

$(C)$ and specific volume $(\frac{m^3}{k}g)$ of each state on the axes. Also, draw an isobar through each state and

annotate the diagram to clearly indicate the pressure $($in kPa $)$ of each isobar. Your diagram does not

need to be to scale but the states need to be in the correct place relative to each other and the critical

point. If the value is not applicable or available, please use N$/$A$.$

You are required to show your computations and partial values for each state.
