Question: PROBLEM 3 . ( 1 0 points ) : Use Integration For the beam and loading shown, determine: a ) the equation of the elastic

PROBLEM 3.(10 points): Use Integration

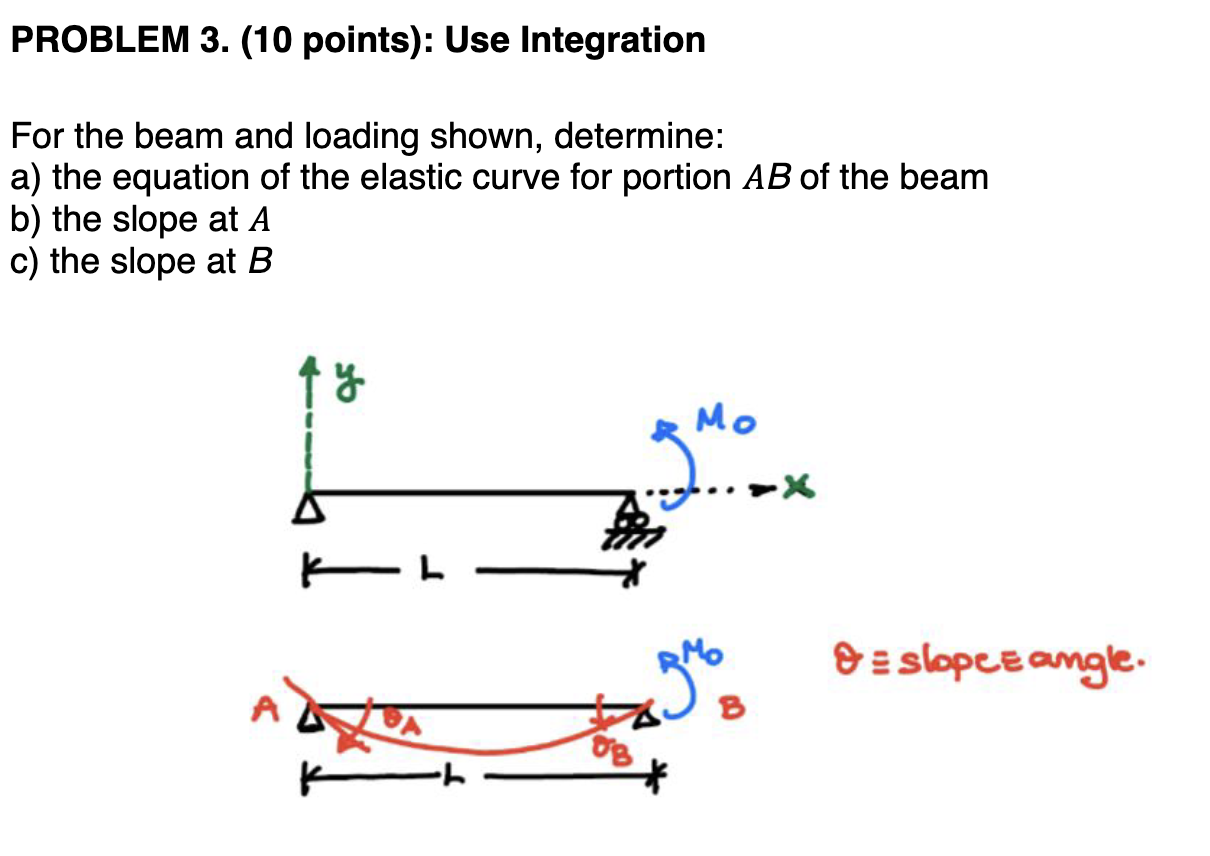

For the beam and loading shown, determine:
a) the equation of the elastic curve for portion AB of the beam
b) the slope at A
c) the slope at B
PROBLEM 3 . ( 1 0 points ) : Use Integration For

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
