Question: Problem 3 [ 1 0 pts ] : Consider the beam shown in the figure below. Suppose that M = 6 5 k N *

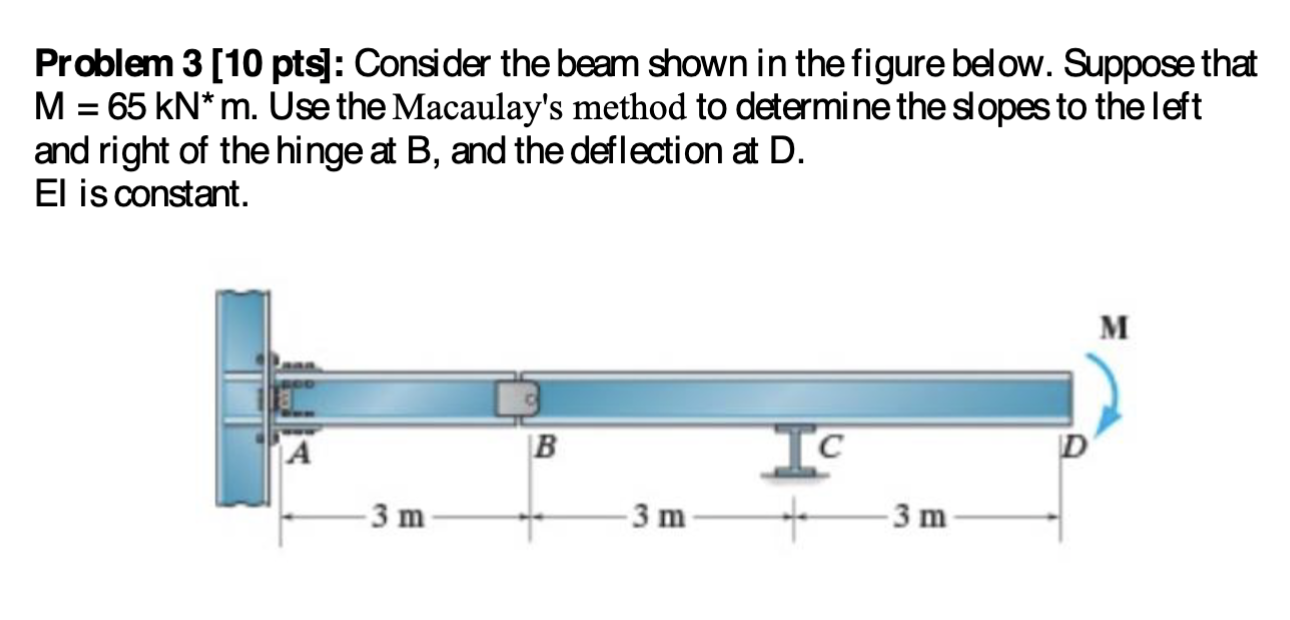

Problem 3[10 pts]: Consider the beam shown in the figure below. Suppose that M=65kN*m. Use the Macaulay's method to determine the slopes to the left and right of the hinge at B, and the deflection at D. El is constant.
Problem 3 [ 1 0 pts ] : Consider the beam shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
