Problem $3\mathrm{.}16-$ Enhanced $-$ with Hints and Feedback

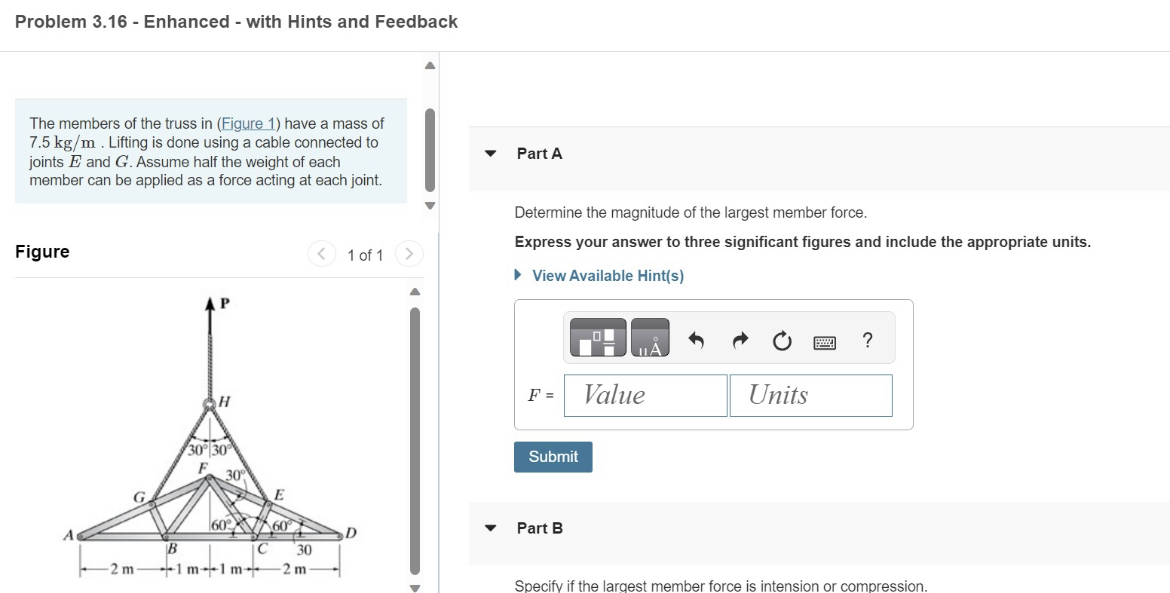

The members of the truss in $($Figure $1)$ have a mass of $7\mathrm{.}5k\frac{g}{m}.$ Lifting is done using a cable connected to joints $E$ and $G.$ Assume half the weight of each member can be applied as a force acting at each joint.

Figure

$1$ of $1$

Part A

Determine the magnitude of the largest member force.

Express your answer to three significant figures and include the appropriate units.

View Available Hint$($s$)$

$F=$

Part B

Specify if the largest member force is intension or compression.
