Question: PROBLEM 3 ( 2 0 marks ) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section

PROBLEM 3(20 marks)

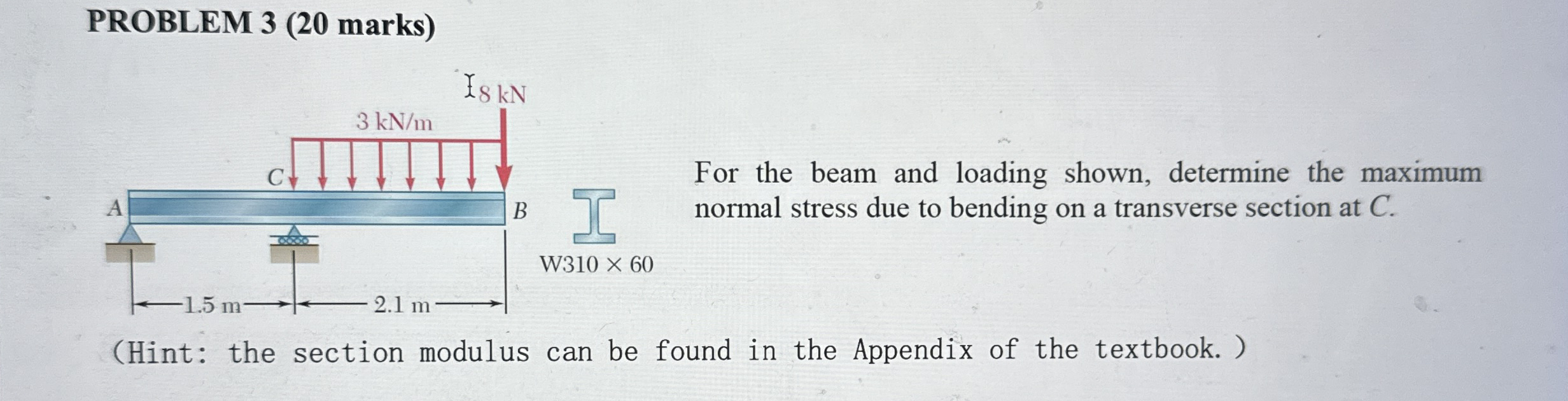

For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C.
60
(Hint: the section modulus can be found in the Appendix of the textbook.)
PROBLEM 3 ( 2 0 marks ) For the beam and loading

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Problem # 2 For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C. 10 kN I 1.5 m 1.5 m 3 kN/m 2.2m 100 mm 200 mm

Q:

A 10 kN 3 kN/m 100 mm 1.5 m 1.5 m 2.2 m 200 mm B PROBLEM 5.15 For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C.

Q:

Question 5 (Problem 5.15) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C. 3kN 3kN SO mm -15 m 15m--1.5 m 300 mm

Q:

3) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C

Q:

6) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C

Q:

4) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C

Q:

Question 6 ( Problem 5 . 1 6 ) For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C .

Q:

For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C . Fig. P 1 2 . 1 3

Q:

Q2 . a) Determine the reactions at the two supports. [4 marks] b) Obtain the shear force equations for the three sections of the beam. [9 marks] c) Obtain the bending moment equations for the three...

Q:

I. Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending. Remember to calculate the Section Modulus [S] B 69M 28 75 N 3 m 4m...
