Question: Problem 3 : ( 2 0 points ) A precast concrete wall section is temporarily held by two cables, as shown. Knowing that the tension

Problem 3: (20 points)

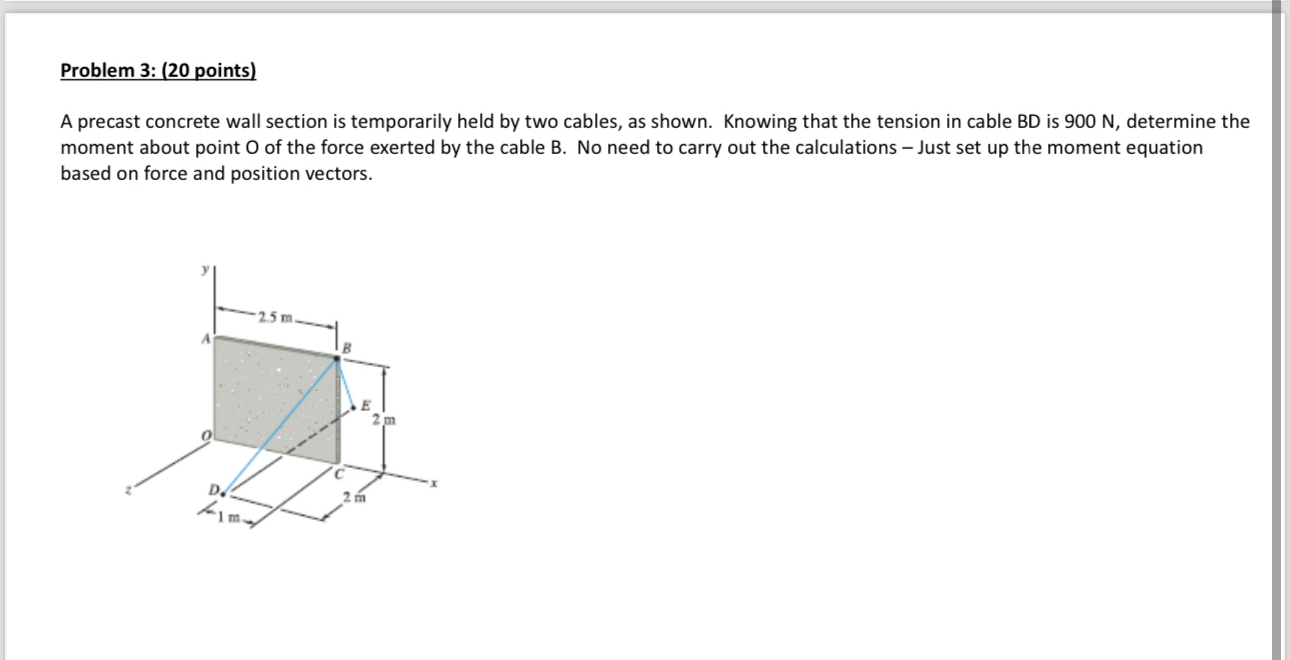

A precast concrete wall section is temporarily held by two cables, as shown. Knowing that the tension in cable BD is 900 N , determine the moment about point O of the force exerted by the cable B . No need to carry out the calculations - Just set up the moment equation based on force and position vectors.
Problem 3 : ( 2 0 points ) A precast concrete

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Question b 2.5 m. B 2 m PROBLEM 3.24 A precast concrete wall section is temporarily held by two cables as shown. Knowing that the tension in cable BD is 900 N, determine the moment about Point O of...

Q:

A precast concrete wall section is temporarily held by two cables as shown. Knowing that the tension in cable BD is 1.5 kN, determine the i, j, k components of the moment about the point O from the...

Q:

A precast concrete wall section is temporarily held by two cables as shown. Knowing that the tension in cable BD is 930 N, determine the perpendicular distance, in meters, from point C to cable BD ....

Q:

In Prob. 3.24, determine the perpendicular distance from point C to cable BD. Problem 3.24: A precast concrete wall section is temporarily held by two cables as shown. Knowing that the tensions in...

Q:

In Prob. 3.26, determine the perpendicular distance from point O to cable BD. PROBLEM 3.26 A precast concrete wall section is temporarily held by two cables as shown. Knowing that the tension in...

Q:

Problem 5 : A precast concrete wall section is temporarily held by two cables as shown. Knowing that the tension in cable BD is 9 0 0 N , determine the moment about Point O of the force exerted by...

Q:

A precast concrete wall section is temporarily held by two cables as shown. Knowing that the tension in cable B D is 9 0 6 N , determine the perpendicular distance, in meters, from point C to cable B...

Q:

A precast concrete wall section is temporarily held by two cables as shown. Knowing that the tensions in cables B D and F E are 3 4 0 N and 6 8 0 N , respectively, determine: ( a ) the moment about...

Q:

In Prob. 3.26, determine the perpendicular distance from point C to cable BD. PROBLEM 3.26 A precast concrete wall section is temporarily held by two cables as shown. Knowing that the tension in...

Q:

A precast concrete wall section is temporarily held by two cables as shown. Knowing that the tension in cable B D is 1 , 0 1 0 N , determine the moment about point O of the force exerted by the cable...
