Question: Problem 3 ( 2 0 points ) : Rectangular gate A B is hinged at the free surface between fluid X and air, as shown

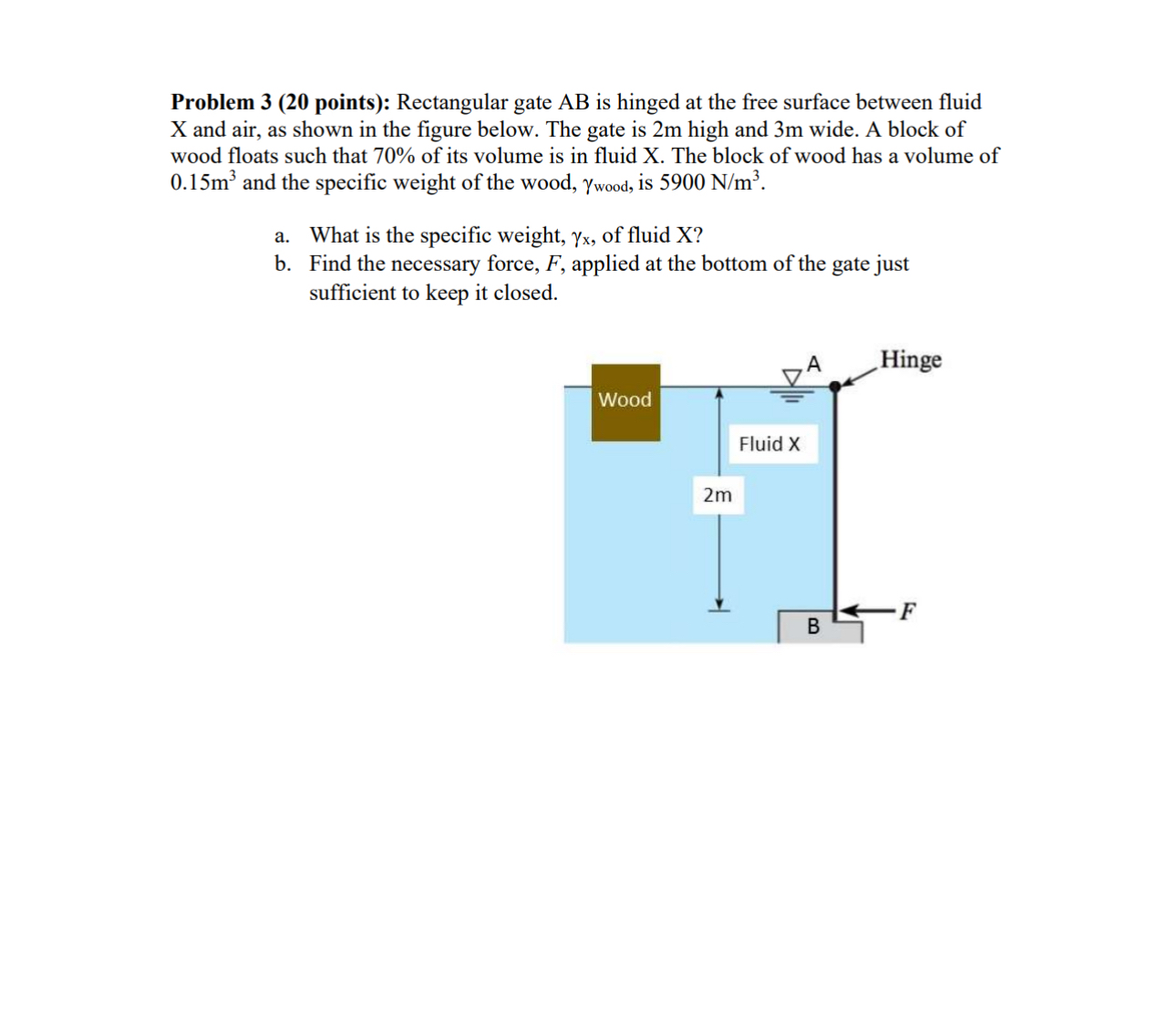

Problem 3(20 points): Rectangular gate AB is hinged at the free surface between fluid X and air, as shown in the figure below. The gate is 2 m high and 3 m wide. A block of wood floats such that 70% of its volume is in fluid X . The block of wood has a volume of 0.15m3 and the specific weight of the wood, wood, is 5900Nm3.
a. What is the specific weight, x, of fluid X ?
b. Find the necessary force, F, applied at the bottom of the gate just sufficient to keep it closed.
