Question: PROBLEM 3 : [ 2 0 POINTS ] Replace this loading by an equivalent resultant force and specify where the resultant's line of action intersects

PROBLEM 3: [20 POINTS]

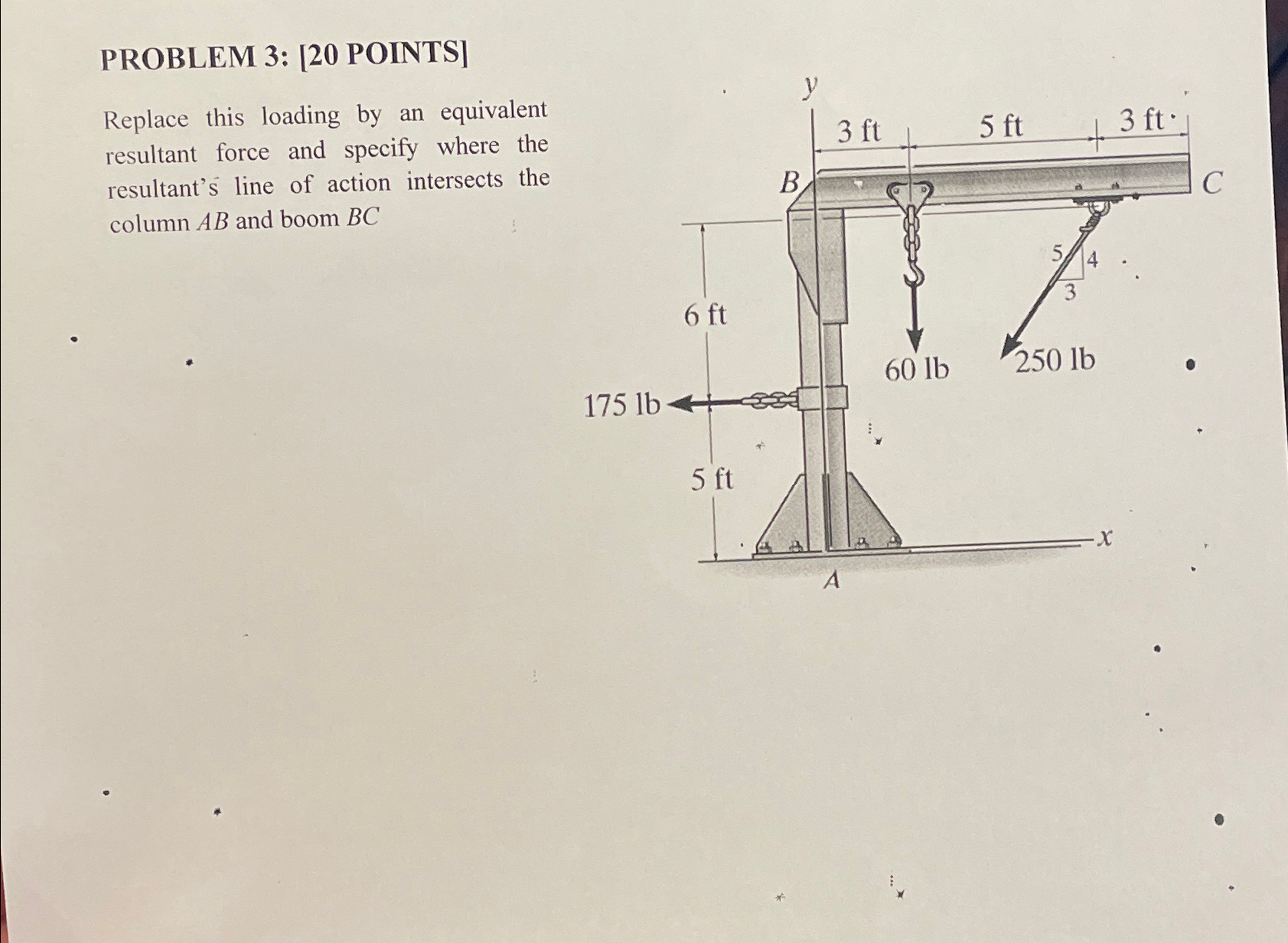

Replace this loading by an equivalent resultant force and specify where the resultant's line of action intersects the column AB and boom BC
PROBLEM 3 : [ 2 0 POINTS ] Replace this loading

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Problem 3 Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. F. = 350 N, F, = 500 N, F) = 600 N, M = 150 Nm, 0 = 60...

Q:

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A (Figure 1). Suppose that F = 660 N, F = 280 N, and M = 300 N-m Determine...

Q:

Item 22 Assume F = F3 = 520 lb and F2 = 260 lb in (Figure 1). Replace the loading by an equivalent resultant force. Part A Figure F F F3 -3 ft 3 ft- -3 ft 3 ft 1 of 1 x Determine the magnitude of the...

Q:

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A (Figure 1). Suppose that F = 660 N, F = 280 N, and M = 300 N. m. Determine...

Q:

Replace the loading by an equivalent resultant force and specify where the resultant's line of action intersects the horizontal segment of the member measured from A. 20 kN -2m- -2 m- B -2 m- 3 2m 15...

Q:

Replace the loading by an equivalent resultant force and specify where the resultant's line of action intersects the member measured from A. -3 ft- 200 lb -3 ft- -3 ft-30 100 lb 50 lb

Q:

Replace the loading by an equivalent resultant force and specify where the resultant's line of action intersects the beam measured from O. O 500 lb 250 lb 500 lb +38+36-36-36- -3 ft--3 ft- -3 ft-3...

Q:

Replace the loading by an equivalent resultant force and specify where the resultant's line of action intersects the member AB measured from A. 0.5 m 0.5 m 8 kN 3 m B y 0.5 m A -1.5 m- 6 kN X 5 kN

Q:

Replace the distributed loading by an equivalent resultant force and specify where its line of action intersects a vertical line along member BC, measured from C. A 3 kN/m 3 m 4 m B 2 kN/m

Q:

Replace the distributed loading by an equivalent resultant force and specify where its line of action intersects a horizontal line along member AB, measured from A. A 3 kN/m 3m 4 m LB 2 kN/m
