Question: PROBLEM 3 . 2 6 The two solid shafts are connected by gears as shown and are made of a steel for which the allowable

PROBLEM 3.26

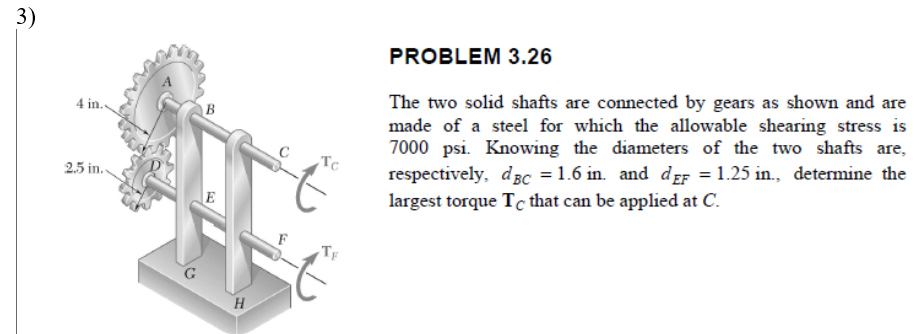

The two solid shafts are connected by gears as shown and are made of a steel for which the allowable shearing stress is 7000 psi. Knowing the diameters of the two shafts are, respectively, dBC=1.6 in. and dEF=1.25 in., determine the largest torque TC that can be applied at C.
PROBLEM 3 . 2 6 The two solid shafts are

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
