Question: Problem 3 . 2 ( Medium ) Determine the force P needed to hold the cable in the position shown so that segment BC remains

Problem 3.2(Medium)

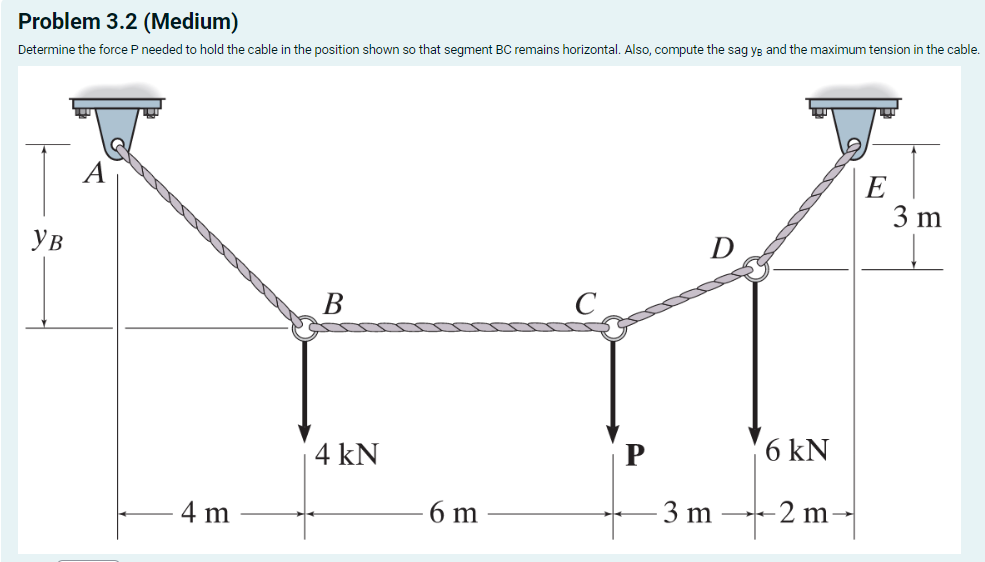

Determine the force P needed to hold the cable in the position shown so that segment BC remains horizontal. Also, compute the sag yB and the maximum tension in the cable.
1. yB = Answer
m
2. P = Answer
kN
3. Maximum Tension = Answer
kN
Problem 3 . 2 ( Medium ) Determine the force P

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
