Question: Problem 3 ( 3 0 % ) For the shown truss structure, determine the forces in the following members, and state if each member is

Problem 3(30%)

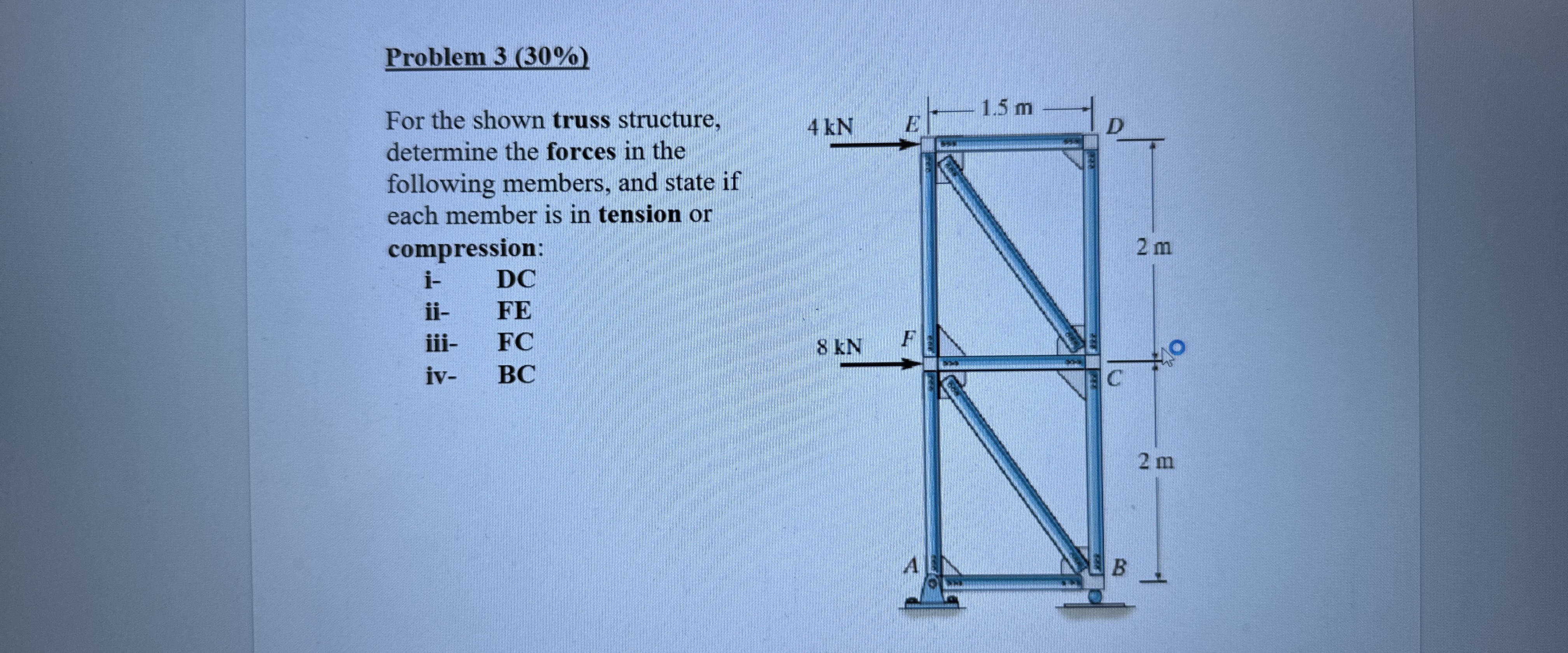

For the shown truss structure, determine the forces in the following members, and state if each member is in tension or compression:
i- DC
ii- FE
iii- FC
iv- BC
Problem 3 ( 3 0 % ) For the shown truss

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
