Question: Problem 3 ( 3 pts each part): Let A be the language accepted by the DFA M1 and B be the language accepted by the

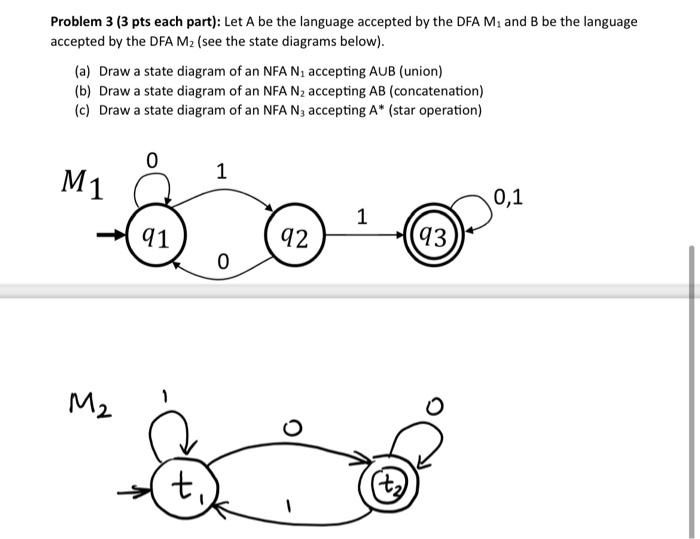

Problem 3 ( 3 pts each part): Let A be the language accepted by the DFA M1 and B be the language accepted by the DFA M2 (see the state diagrams below). (a) Draw a state diagram of an NFA N1 accepting AUB (union) (b) Draw a state diagram of an NFA N2 accepting AB (concatenation) (c) Draw a state diagram of an NFA N3 accepting A (star operation)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
