Question: Problem # 3 ( 4 0 pts ) : Replace the force and couple moment system acting on the beam by an equivalent resultant force,

Problem #

3 (40

pts

)

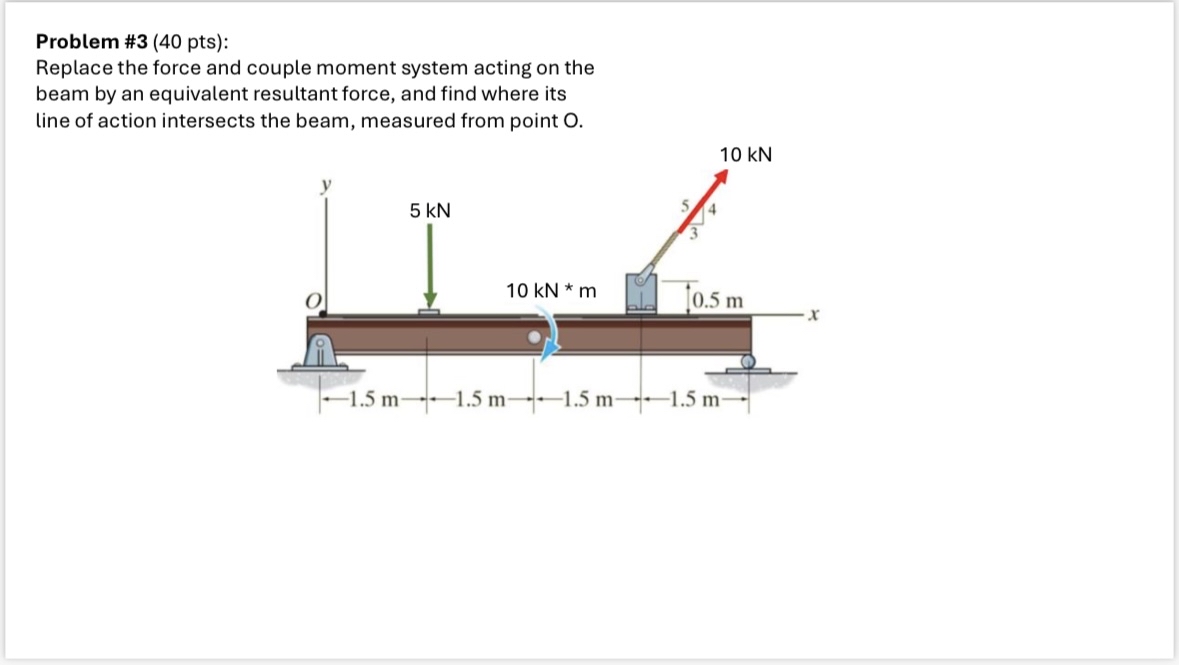

Replace the force and couple moment system acting on the beam by an equivalent resultant force, and find where its line of action intersects the beam, measured from point

O .

Problem # 3 ( 4 0 pts ) : Replace the force and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
